Aztro model David Bench Top Labelling Machine

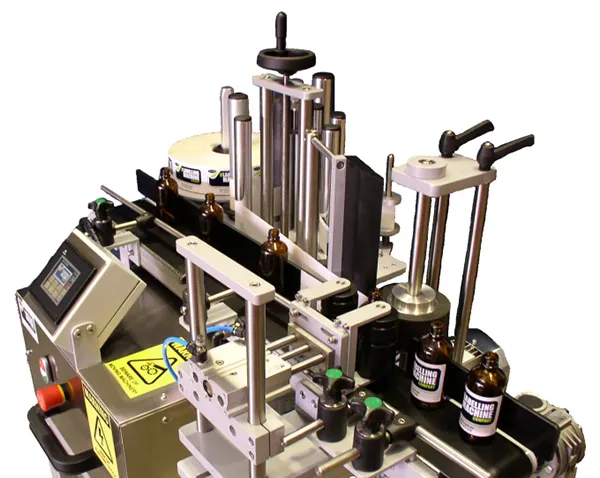

Aztro model David Bench Top Labelling Machine

Built from extruded aluminium and stainless steel to Australian high standards, these machines are available as right hand models. The label head can apply labels to the front or back (or both) of round containers only. The speed of the labelling machine can be adjusted to match production line speeds.

The user-friendly 2 way adjustment on the labelling head ensures that the label position can be precisely and accurately positioned on the container. The state-of-the-art labelling head with servo motor ensures accurate and consistent label positioning. Most containers and labels can be managed without change parts.

All machine controls and settings are set with intuitive touch screen control, centrally mounted on the machine. The Aztro David range of labelling machines have PLC control, can be fitted with a range of options as required.

Features

• Touch screen control
• PLC, programmed for:
  • format storage, up to 50 label formats
  • I/O ports
  • shift register for product detecting
• Setting of:
  • label dispensing speed (up to 20Mt/min depending on label width)
  • label offset
  • label delay
• One servo motor driven side mounted label head
• Wind up/down label head adjustment
• Wrap module (up to 100% label wrap or a front & back label off the same roll)
• Start/stop and emergency shut off button
• Base structure of extruded anodised aluminium
• Stainless steel equipment cabinet

Options

• 1.0 meter long belt product conveyor, 100mm wide
• Low label roll detection with alarm
• Thermal printer with mounting bracket (printing "use by"&"batch" detail on labels)
• Label orientation sensor
• Safety foot pedal
• Rotary in feed table (up to 600mm diameter)
• Rotary pack off table (up to 600mm diameter)
• Mobile support frame of extruded anodised aluminium
• Clear label gap sensors (or clear labels with metallic foil)
• Additional conveyor length in 0.5 meter sections
• Partial machine guarding
• Other options are available on request

Specifications

• Power supply: single phase 240 Vac 50Hz 10 Amp
• Air Supply: 6 bar/90psi (maximum) dry uncontained, continuous air supply
• Conveyor Height: subject to customers bench height
• Conveyor Length: Optional 1000mm (or made to order)
• Conveyor Width: Optional 100mm (or made to order)
• Conveyor Maximum Speed: Optional 20Mt/min
• Label Head Height: 200mm
• Label Placement Accuracy: +/- 1mm (subject to any container tolerance variations)
• Maximum Diameter Label Roll - 300mm
• Maximum Label Core Size: 76mm
• Minimum Label Core Size: 32mm
• Maximum Product Diameter: 100mm
• Minimum Product Diameter: 20mm
• Machine Weight: Approximately 90kg (standard machine without options)
