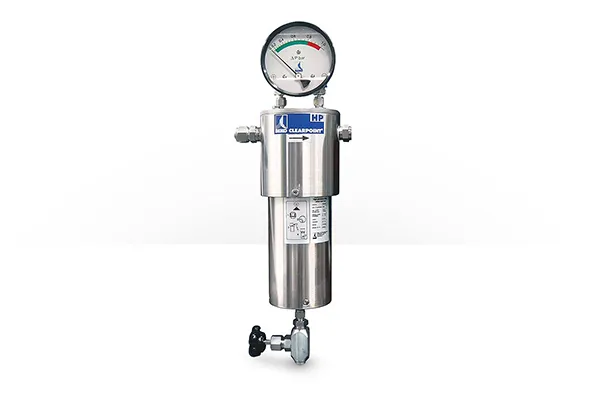

CLEARPOINT® high pressure filter, 100 to 500 bar
The higher the pressure is, the higher the requirements are for compressed air filtration. With a very robust housing and high temperature resistance of up to 120°C, CLEARPOINT high pressure filters provide a variety of technical and economical advantages for reliable separation of solid contaminants, aerosols, oil vapours and odours.
Piston compressors cause pulsations in the compressed air flow based on their system designs. The resulting vibrations can cause conventional filter housings to leak. CLEARPOINT filter housings have a special locking system and therefore remain leak proof.
Quality in every detail
The housing, filter element caps and support cylinders of our high-pressure filters are made of stainless steel - for good reasons: This design enables us to prevent corrosion and guarantee exceptionally long service life, even with aggressive condensates. CLEARPOINT high pressure filters are available for the pressure stages 100, 350 and 500 bar, optionally with manual drain off and differential pressure manometer. The perfect solution for every requirement.
The CLEARPOINT high pressure filters for 100 to 500 bar are available in different degrees of filtration:
Filtering degree
|
Particle size
|
Coarse Filter C
|
25 μm
|
Coarse Filter G
|
5 μm
|
Fine Filter F
|
1 μm
|
Superfine Filter S
|
0,01 μm
|
Activated carbon filter
|
Oil vapour, odours
|
Advantages of CLEARPOINT® high pressure filters
No corrosion, no impairment of filter performance, no "seizing" of the threads
All metallic components are made of stainless steel as standard
Determination of economic element change
Standard (as of S045) with connection for differential manometer
Element change even in confined spaces
Element connection is either executed with screw thread (up to S040) or with plug-in connection (as of S045)
Additional protection against loosening of the housing screw connection by pulsating volume flow
Lateral clamping screw prevents leaks
Consistent documentation for traceability
Approval certificate according to DIN EN 10204. Embossed serial number on housing
Housing O-ring radial sealing
Advantage: no destruction of the O-ring when exchanging elements (danger when with utilising axial O-ring seals). Supports setting behaviour of the gasket. No leaks
Technical data CLEARPOINT® HP
Volume flow
|
40 – 4420 m³/h
|
Maximum operating pressure
|
100, 350, 500 bar [ü]
|
Housing
|
stainless steel 1.4301
|
Permissible operating temperature:
|
Generally max. + 120 °C
|
|
(HP350S075 und HP350M010 max. + 60 °C)
|
|
Design with differential manometer maximum + 80 °C
|
