Activated Carbon Adsorber
Activated Carbon Adsorber
Economic oil-free compressed air with activated carbon adsorbers
In order to ensure high compressed air quality with compressed air class 1-2 in accordance with ISO 8573-1, in particular with regard to the residual oil content, the CLEARPOINT V activated-carbon adsorber is the effective and reliable technical component in demanding system designs.
The consistent overall concept guarantees compressed air quality with a minimum residual oil content extremely cost-efficiently. Oil vapours and odours are adsorbed on the unusually large active surface of the compression-moulded activated carbon pellets. When selecting our activated carbon, we work together with selected suppliers who guarantee consistent carbon quality. A major advantage for your compressed air quality and process reliability.
Depending on the compressed air volume required, BEKO TECHNOLOGIES can offer you the suitable solutions.

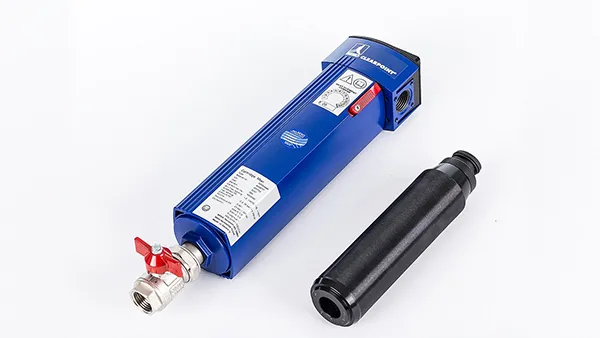

CLEARPOINT® V S/M activated carbon cartridges
CLEARPOINT V activated carbon cartridge for small and medium volume flows
For small and medium volume flows up to 200 m³/h and pressures up to 50 bar [g], our CLEARPOINT V S/M offer a clean solution for oil-free treatment.
A special activated carbon cartridge has been developed for maximum requirement profiles.
- Highly efficient adsorption with minimum residual oil content
- Significantly higher service lives than conventional activated carbon filter elements
- Service-friendly with easy to exchange cartridge
- Conventional testing technology can easily be adapted
Advantages of CLEARPOINT® V
Economical
- low operating costs
- low differential pressure
- long service life
Efficient
- efficient oil vapour adsorption with special activated carbon for max. residual oil content of 0.003 mg/m³
- complete solution with oil-free dust filter
Options
- oil test indicator or
- METPOINT OCV compact - residual oil content monitoring to safeguard production processes
