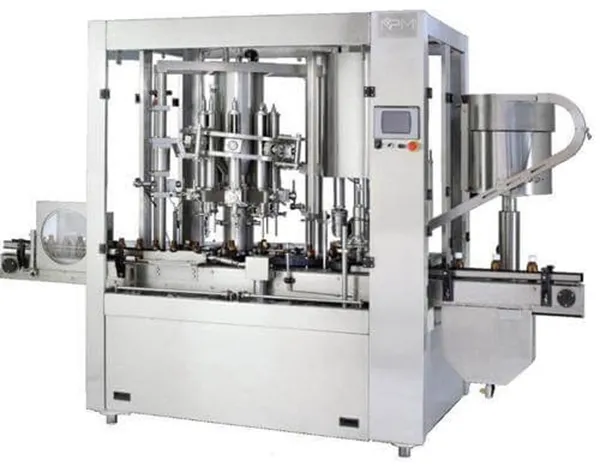

AUTOMATIC ROTARY PISTON FILLING & CAPPING MACHINE

AUTOMATIC ROTARY PISTON FILLING & CAPPING MACHINE

Description:

• “GMP” Model based on advanced technology.
• Single Operator for Two Operations.
• Less Floor Area – as both the sections driven by one motor.
• No Contamination as immediate sealing of filled bottles.
• Accuracy ±1% due to piston dozing principle.
• Centralized Volume Adjustment System.
• No Bottle No Fill for individual head, hence no spillages.
• Placing of Cap Feeder Outside Monoblock-avoid entering of dust in it.
• Fewer Caps in chute automatically stop the machine.
• Additional Sensors for Minimum and Maximum Level of Cap in chute which automatically start and stop rotary cap feeder to avoid Damage of caps during Rotation and Wastage of Energy.
• Better finish imported polished, laminated S.S. sheet used.
• Electronic liquid level controller and pneumatically controlled control valve.
• Drip trays under the conveyor.
• Self-Lubricating UHMW- PE Guide profile for Low friction wear surface, smooth and noiseless conveying.
• Universal coupling for quick and easy setting of In-feed worm.
• Safety Guard for Operation and Protection.
• Electronic Sensor at out feed for Bottle Jamming.

Optional Features :

• Motorized Height Adjustments.
• Automatic chain washing system for conveyor belt.
• In-built pre-inspection.
• Nitrogen Flushing.
• Cap Elevator to feed caps to the feeding bowl.
