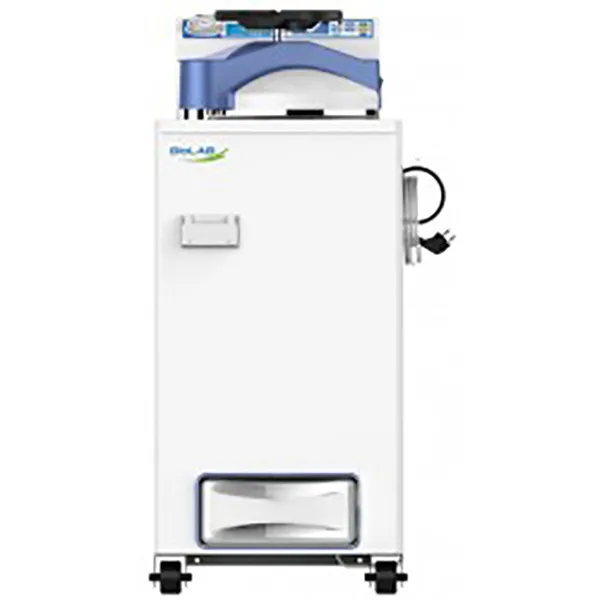

Vertical Autoclave BAVT-501-A

Vertical Autoclave BAVT-501-A

Sterilization process can be pre-set and completed automatically
Simple and easily understandable control panel to show the sterilization termperature, sterilization time and drying time at the same time, pressing separate keys to set the temperature and time makes the operation easier
System automatically monitors the discharging of the cold air to guarantee a pure steam sterilization environment and optimal sterilization effects
LED screen clearly shows the dynamic sterilization process

Specifications

Capacity	36 L
Function	Fully automatic + Drying
Sterilization chamber (Dia*mm)	⌀325x460
Working environment	5°C-40°C, relative humidity 10%-85%
Chamber material	SUS 304 stainless steel
Sterilization Temperature	105-135°C
Sterilization Time	1-300 min
Drying time range	1-300 min
Range of pressure gauge	0-0.4 Mpa
Controller	Microcomputer control system
Mode	Solid mode, liquid mode
Stainless steel basket (Dia*H,mm)	( ⌀300x200 )x2
Overall Dimension (LxWxH)	460x542x960 mm
Power	2300
Standard Accessories	Stainless steel baskets, waste bottle, water plate, drainage hose
Optional Accessories	Printer, printing set, stainless steel pails
Power Supply	AC220V 50Hz

Features

Sterilization process can be pre-set and completed automatically
Simple and easily understandable control panel to show the sterilization termperature, sterilization time and drying time at the same time, pressing separate keys to set the temperature and time makes the operation easier
System automatically monitors the discharging of the cold air to guarantee a pure steam sterilization environment and optimal sterilization effects
LED screen clearly shows the dynamic sterilization process
13 error detection procedures to monitor the normal operation of the instrument
Self-induction interlocking devices to avoid risk of misuse
Dual overpressure protection system: upon detection of any abnormal pressure, system will relieve pressures or disconnect power supplies
Over temperature protection system: power supply will be disconnected for protection upon detection of over temperature
Dry soorch protection system: power supply will be disconnected for protection upon detection of overlow water level
Cover checking system: system can automatically check the locking of the cover, if the cover is not tightly locked, the autoclave can't be started
Electric leakage, over current and short circuit pro tection: system will disconnect the power supply to avoid an electricity shock or other accidents
Unique anti-scald cover and bench: avoid causing corrosions and scald
