Weighing Isolator-Containment Isolator

Weighing Isolator-Containment Isolator

Description

• Dual-chamber weighing isolator
• Airlock with one glove allowing for loading of material and instruments
• Working chamber with three gloves intended for work with hazardous materials
• Possible to ensure inert atmosphere inside chambers (N2, Ar)
• Leak tightness class 3 according to ISO 10648-2
• “C” Class cleanliness according to EU GMP standard
• “Audit Trail” compliant
• Electronic control system for automatic adjustment of basic operating modes managed by Siemens PLC
• Color touchscreen controls
• Jacket material: stainless steel AISI 304
• Isolator working chamber material – AISI 316L with a thickness of 3.00 mm
• Polished surface finish, Ra < 0.6 µm
• Inlet filtration HEPA H14 - “C” Class cleanliness
• Safe filtration of exhaust air with double HEPA H14 filters
• Easy-to-clean inner and outer surfaces
• Sliding trays between chambers for easy material transfer
• Oval holes with gloves for improved material handling
• Turbulent flow
• Negative pressure mode

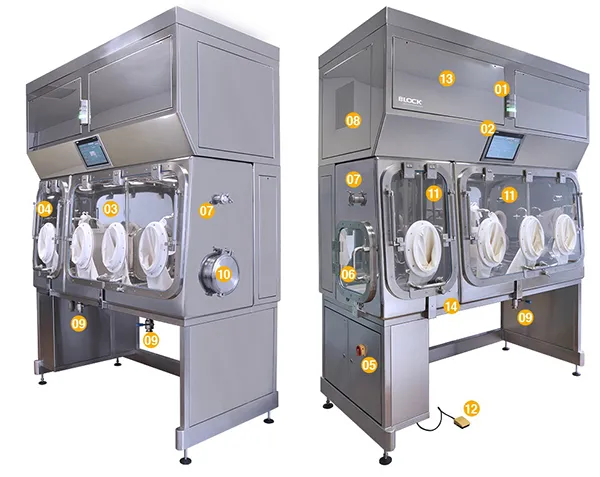

Parts

1. Visual and acoustic alarm
2. HMI panel
3. Working chamber K1
4. Working chamber K2
5. Main switch
6. Hinged door
7. Tri-clamp validation port
8. F5 Pre-filter
9. Liquid waste removal valve
10. Tri clamp equipped for a continuous liner
11. Front window
12. Foot-operated switch
13. Service panel
14. Sensors for monitoring safe closure of the window

HMI Panel

This isolator control system is operated with a Siemens color touch screen. The Simatic control system from Siemens together with a foot-operated switch creates an intuitive and user-friendly experience. The screen displays the actual parameters of the environment and monitors emergency statuses. The system includes remote access for customer service support. As required, it is possible to implement connection to an additional device for production data storage and export.

Overview of Functions

• User Login and automatic log-off countdown timer
• Illumination control icons
• Chamber interior physical values measurement display
• Socket control icons
• Device Operation modes menu, Alarms and Settings menu
