Dry Syrup Powder Filling Machine

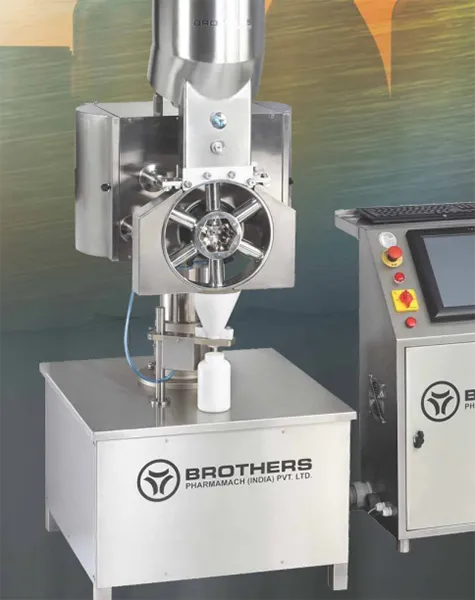

Semi Automatic Single Head Vacuumetric Type Powder Filling Machine Model DRYFILL-20, is suitable for Filling Free Flow Powders in various type and shape of bottles with speed of 15-20 Bottles per minute depending on Fill Volume, type of Powder and Bottle Size. The Machine works on proven time tested Vacuum and Air Systems to Fill powder in Bottle using Powder Wheel System having Piston for Volume Adjustment. Machines with unique vibratory system inside the funnel for easy flow of powder in Bottle. All Parts coming in contact with powder are made from S.S.316 , Nylon and HDPE Material. Bottle handling is manually to be done by operator only. TECHNICAL SPECIFICATIONS Fill Range : 5gms. To 70gms. In Single Dose System with help of required change parts Accuracy : +/- 1 to 2% Depending upon the Powder, under the controlled level of Humidity Speed : Max. 20 Bottles per minute depending on Bottle Neck Diameter, Fill Weight, type of Powder and Machine Operator Skill Overall Dimensions : 700 mm (L) x 725 mm (W) x 1800 mm(H) and 600 mm (L) x 300 mm (W) x 825 mm(H) Control Panel * Specification can be changed as per customers requirements Note: Machine shown with Control Panel having PC Based 21CFR System which is Optional available at an Extra Cost.
