Bunting - Berkhamsted

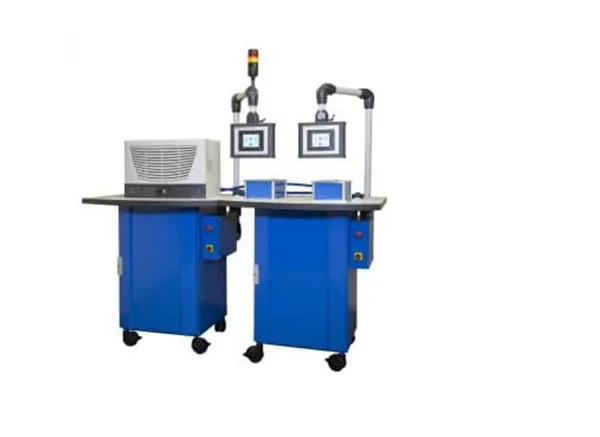

BMCL Series

The BMCL Series is ideally suited for laboratories or small-part production. They have a workbench area on top of the unit where the fixtures are placed for operation and either hard wired in for permanent installations or connected by quick release plugs for environments where many different fixtures may be used. They can be fitted with a standard push button control panel or with an HMI Interface if preferred.

Standard safety interlocks prevent fixtures from being operated when over temperature.

For situations where multiple magnetizing fixtures may be used, additional safety interlocks are recommended. The process of setting individual fixture parameters can be automated such that all the operating parameters are stored in the fixture control plug, which once connected to the magnetizer, automatically sets the machine ready for production. This prevents fixtures from ever being operated at too high a voltage or when over temperature which could damage the magnetizing fixture.

These magnetizers are particular suitable for magnetizing small multipole magnets up to diameters of approximately 50mm, fine pole pitch magnetisation, and more general 2 pole magnetization of most permanent magnet materials including rare earths.
