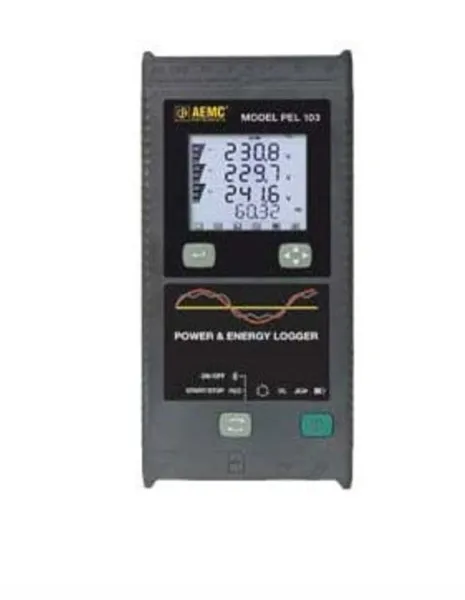

AEMC PEL 103

Simple to use, single-, dual- (split-phase) and three-phase (Y, ∆) power & energy loggers
Provides all the necessary functions for Power and Energy data logging for 50Hz, 60Hz, 400Hz and DC distribution systems
Current measurements from 100mA up to10,000A using flexible current sensors
Automatic recognition of the connected current sensors/probes
Power measurements: VA, W and var
Energy measurements VAh, Wh (source/load indication) and varh (including quadrant indication)
Record cost of energy usage
Power Factor (PF), Cos (ϕ), Tan (Φ) and DPF
Total Harmonic Distortion (THD) for voltagesand currents
Harmonics up to the 50th order for 50/60Hzvoltages and currents and 7th order for 400Hz
Simultaneous RMS measurements of each phase @ 128 samples/cycle and DC
Bright blue, four line LCD on Model PEL 103(3 phases shown simultaneously)
Storage of measured and calculated valueson a SD-Card or SDHC-Card
Configuration of current and voltage ratiosto external PT and CT ratios
USB, LAN, and Bluetooth communication
