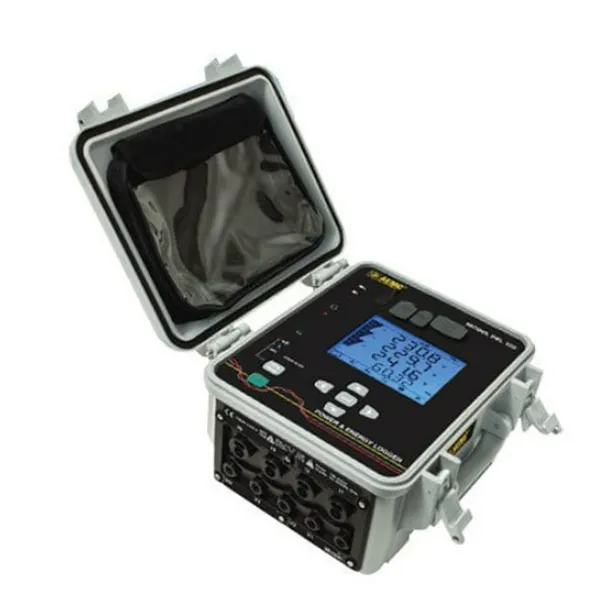

AEMC PEL 105

Waterproof IP67 rated including the current sensors
5 voltage and 4 current measurement inputs
Measures volts, amps, watts, VARs, kWh, power factor and harmonics out to the 50th
Track energy costs including time of use Wi-Fi, Bluetooth Class 1, USB, LAN and Ethernet communication built in
Powered from phase inputs up to 1000VAC or from a wall receptacle
User selectable storage rates and demand intervals
Pole mountable
Can be configured directly from the front panel, through the DataView® control panel or the free Android App
Satisfies the recommendations of NEC 220.87
Minimal programming required
Automatic recognition of the connected current sensors/probes 1000V CAT IV
DataView® software for data storage, real-time display, analysis and report generation
