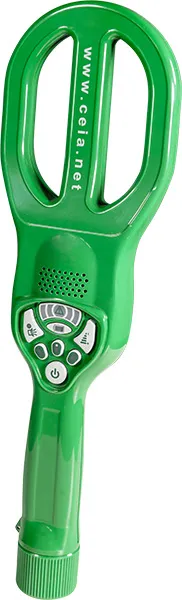

Hand Held Patient Screeners PD240CH Z4
Hand Held Patient Screeners PD240CH Z4
- Non-magnetic construction, suitable to operate inside the magnet room
- Large search area for faster and accurate screening operations
- High precision pinpointing by dual-tone audio signalling & dual-colour display
- Three modes of operation allow for high-performance ferrous detection, head or full body, or full metals detection in full body
- Patient safety - Mitigates the risk of an RF burn occurring in the scanner due to either Ferrous or Non-Ferrous Metals
- Dual sensing - Separate screening for ferrous metallic items or any type of metallic item
- Audible and visual-magnitude alert settings
- Visual signalling combined with the audio provide feedback on the location and position of the object under alarm
PD240CH-Z4 is a portable Hand-held Patient Screener that allows, according with the operator settings, the detection of magnetic metal masses only or magnetic and non-magnetic metals at the same time. The PD240CH-Z4 can be operated in Zone 1, 2, 3, 4.
PD240CH-Z4 is a portable Hand-held Patient Screener that allows, according with the operator settings, the detection of magnetic metal masses only or magnetic and non-magnetic metals at the same time.
The only hand-held MRI patient screening device capable of separately detecting both ferromagnetic and non-ferromagnetic metallic items, the PD240CH-Z4 provides protection from both adverse magnetic field interaction (projectile effect) and potential RF-induced metallic heating.
PD240CH-Z4 is designed to be entirely non-ferromagnetic, there¬fore it can be used inside the MRI room (zone 4) without the risk to be attracted or damaged by the magnets without comprising performance or creating a potential projectile risk.
Power Supply
- 2 x AA size LS14500 very low ferromagnetic Lithium batteries
Control Panel
- Optical and acoustic signalling modes3-Level Sensitivity selection
- ALL METALS (ferromagnetic and non-ferromagnetic metals)
- BODY (small ferromagnetic metals)
- HEAD (very small ferromagnetic metals)
Detection and Operational Functions
- Customizable via HHMD Configuration tool
Battery
- Battery life (AA LS14500 batteries)
- ALL METALS > 100 hours
- FERROUS METAL BODY > 50 hours
- FERROUS METAL HEAD > 50 hours
- Low battery indicator
Operating temperature
Storage temperature
Relative humidity
- 0 to 98% (without condensation)
Dimensions
- PD240CH-Z4 405 mm x 120 mm x 40 mm
- Carry Bag 430 mm x 340 mm x 105 mm
Weight
- PD240CH-Z4 420 g (with battery)
- Carry Bag 2.3 Kg (with equipment)
Compliance
- Conforms to the applicable international standards for safety, EMC and to the applicable CE regulations
Safety features
- Manufactured in shock-resistant technical polymers
- Full non-magnetic construction, suitable to operate in Zone 4 (with magnets up to 3T) and in proximity of the magnet
- Operability and safety of the device have been verified with magnets up to 3T. The test report is available on request
PD240CH-Z4 detecting set
- Hand-held Patient Screener
- 2+2 AA size non-magnetic batteries: part# 94810 (2 batteries)
- Detection Verification. Test Piece: part # 72131
- Discrimination Verification. Test Piece: part # 72132
- Instruction manual
- Certificate of Calibration
- Carry bag
Options / Accessories
- Patient screener configuration tool: setting up the Hand-held Patient Screener via USB PC-HHMD connecting cable and GUI application software: part # 63537
Analysis mode selection
- ALL METALS
- High sensitivity to all types of metals (implanted medical devices, prostheses, metal splinters)
- BODY
- High sensitivity to small ferromagnetic metals (ferromagnetic fragments, surgical instruments)
- Insensitive to large non-ferromagnetic metal items (large prostheses)
- HEAD
- High sensitivity to very small ferromagnetic metals (small ferromagnetic fragments)
- Insensitive to medium size non-ferromagnetic metal items (non-ferromagnetic dental implants, small prostheses)
