Kneader Extruder

Kneader Extruder

Our Kneader Extruder combines the efficiency of a double arm - sigma blade mixer with the convenience of an extrusion screw for the mixing and discharging of heavy viscous materials.

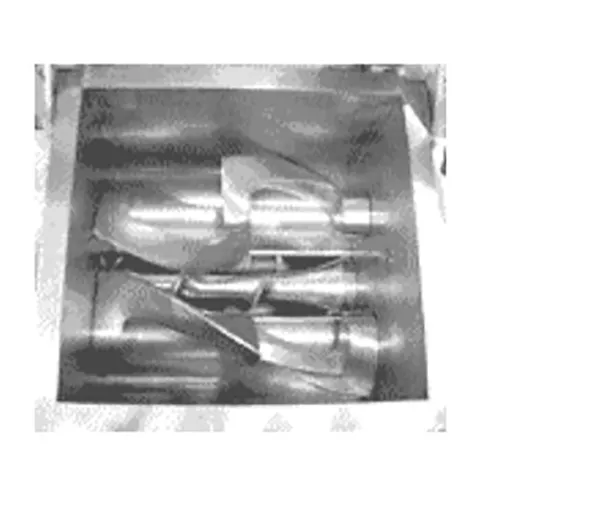

The Kneader Extruder includes a set of counter-rotating kneading blades and a discharge screw. The blades are mounted on a horizontal axis in a u-shaped trough. Below the blades in a separate cavity is the discharge screw. During the mixing cycle the blades rotate toward each other while the mixing screw rotates in a reverse direction, constantly feeding new materials into the mixing blades. After the mixing/kneading cycle is complete, the screw is reversed and it transports the mixed materials from the mix zone out through a discharge die and on to further processing or packaging.

The Kneader Extruder has several advantages over conventional non-screw discharge kneaders:

1. Mixes in approx. 15% less time

2. Eliminates the manual task of scraping out sticky/tacky materials.

3.Eliminates operator exposure to materials of elevated temperatures or of a toxic nature, thereby improving plant safety.

Many sizes and designs are available to meet the most stringent process needs. Kneader Extruders are manufactured in many sizes from 1 through 1000 gallons capacity.
