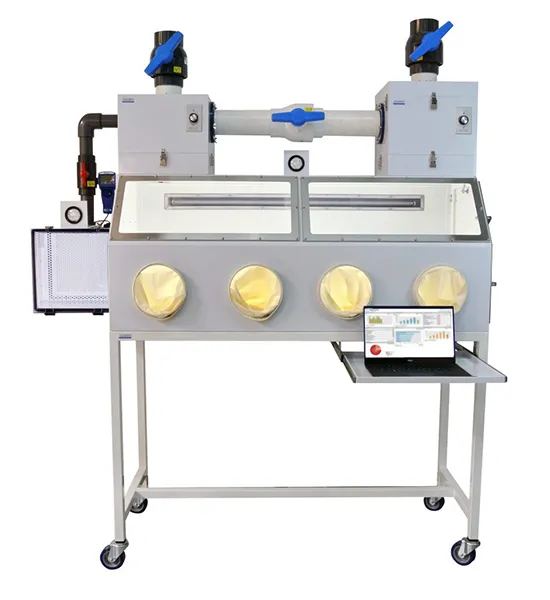

Filtration Glove Boxes 2400 Series
Filtration Glove Boxes 2400 Series
Closed Loop Filtration Glove Boxes
2400 Series filtration glove box is a combination of isolation glove boxes 2100 series with HEPA filtered glove boxes 2300 series. It provides low humidity environment along with a clean, particulate controlled work space for critical processing operations in nanotechnology, semiconductor and pharmaceuticalindustries.
As in 2300 series , closed loop glove boxes can be configured as negative pressure to protect the operator from hazardous airborne particulates and powders or positive pressure to protect samples against airborne particles. Positive pressure glove boxes may be appropriate for use for applications required ISO 5 cleanliness Level.
In multi-Configuration glove box a valve system allows conversion from open exhaust operation with fresh make-up air, to a closed-loop recirculation for capture particles.
In the simple loop glove box systems, inside atmosphere purified by continuous recirculation through a HEPA or ULPA filter. The filter removes particulate and other contaminants to provide a clean process environment.
Gloveboxes available in four materials: Acrylic,Static-dissipative PVC,Non-dissipative PVC and Polypropylene.
|
Glove Box Options & Accessories
|
|
Airlock Pass-through Transfer Chamber measures minimize nitrogen loss and contamination inflow.
|
|
Gas-in port & Pressure relief valve are required if using CDA, Nitrogen or any inner gas to reduce humidity. Pressure relief Valve provides safe pressure relief and helps to purge the moisture out the chamber.
|
|
Single cord or Multi-cord Air-Tight Cord Grips, for cord diameter .08’’ to 1.25’’ Ideal for power cord data & internet cables, USB, monitor & printer connectors.
|
|
Hospital Grade Power Strip with four power outlets
|
|
Stand with Caster Epoxy Power Coated Steel, 30’’ / 35” Height
|
|
Dry box gloves or Bare hand entry (IRIS port)
|
|
Automatic purge control unit with RH or O2 sensor
|
|
Digital Hygrometer / Oxygen monitor
|
|
Magnehelic gauge 0-3″ W.G. With Polypro. Bracket to monitor inside pressure
|
|
Stainless steel tray or stainless steel flat worksurface, 304 grade
|
