TRANSMISSION PROBE

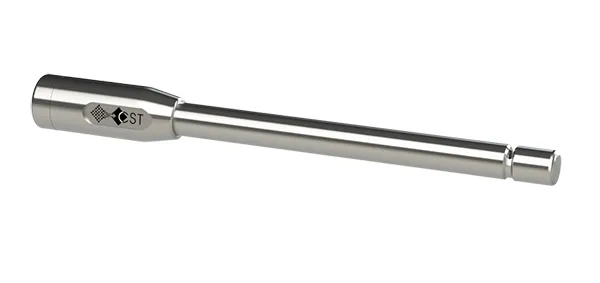

TRANSMISSION PROBE

Our process-ready transmission probe enables inline measurements of gas or liquid sample streams in demanding industrial environments. The transmission probe directs light energy from a source SMA-905 connection through a sample and returns the light energy to a measure SMA-905 connection via a prism. The Transmission Probe is designed to facilitate absorbance measurements for low or high concentrations within a gas or liquid sample stream.

• STANDARD SPECIFICATIONS
• Path Length: 1-20 mm; 1, 5, 10, or 20 mm Standard
• Probe Length: 220 mm
• Probe Diameter: 19 mm
• Material: 316 Stainless Steel
• Internal Optics: Fused Silica
• Seal Material: Viton
• Temperature: -5 C – 204 C
• Wavelength: 220 – 2400 nm
