Bottle Unscrambler and Air Rinser CVC 1263D

Bottle Unscrambler and Air Rinser CVC 1263D

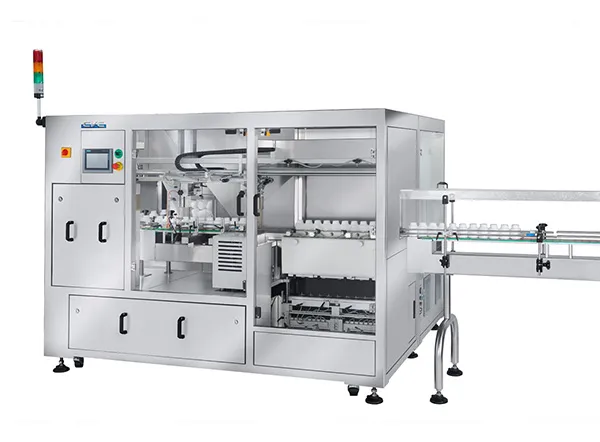

The CVC 1263D Bottle Unscrambler is designed to automatically feed bottles from a bin and place them upright onto a conveyor at speeds of up to 120 bottles per minute. The CVC 1263D is built on a Siemens control system including a HMI panel. Options include ionized air rinse with vacuum, fallen bottle sensor with return to bin, low level hopper sensor, tower lamp, and static eliminator bar. No change parts required.

STANDARD FEATURES

• Display touchscreen instruction for machine operation is available in two languages
• Interlocked safety guarding
• Low level hopper sensor
• Bottle backlog sensor at outfeed
• Type 304 stainless steel bin, frame, enclosure panels.
• Type 316 stainless steel contact parts.
• ISO 9001:2015 certified.

TECHNICAL SPECIFICATIONS\

AVAILABLE OPTIONS:

• Static Electricity Eliminator
• Vacuum block detection assembly
• Upside down bottle, fallen bottle reject assembly
• Tower lamp
• 21CFR Part 11 License

The dimensions shown are for standard machine. The conveyor can be extended: the length may var y based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.
