MoistureMeterD

MoistureMeterD

Measurements of tissue water content at different depths

The Delfin MoistureMeterD is a unique water-specific instrument for the measurement of water content of biological tissues. It measures the dielectric constant of the skin and subcutaneous tissues non-invasively and locally in a few seconds. The tissue dielectric constant (TDC) is directly proportional to the amount of water in the tissue. The TDC value increases with increasing water content and edema.

BENEFITS

• Highly sensitive measurement of water content and edema in skin and subcutis
• Totally non-invasive
• Fast and easy measurement
• Local measurements on virtually all areas of the body
• Probes for different measurement depths up to 5 mm

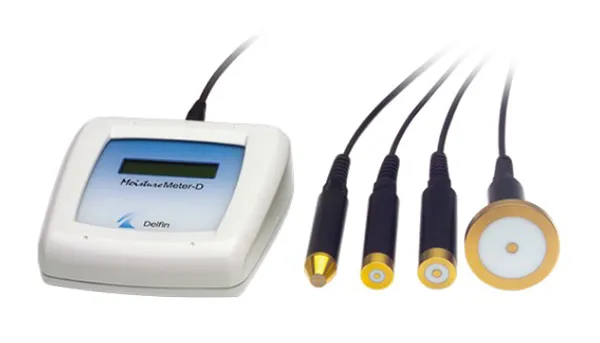

• The desktop multiprobe MoistureMeterD model consists of a measuring unit and four probes with effective measurement depths from 0.5 mm to 5.0 mm. The multiprobe MoistureMeterD can be used in all clinical and non-clinical research applications where changes of tissue water may exist.

Measurement principle

The MoistureMeterD generates a high frequency, 300 MHz, low power electromagnetic (EM) wave which the tissue is exposed to. The reflected EM wave is registered and the obtained value is a dielectric constant, which is proportional to the water content of the measured tissue. The value increases with increasing water content and edema.
