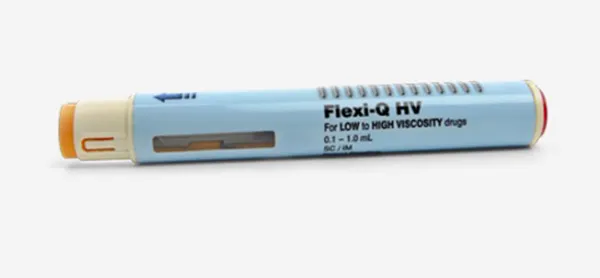

Flexi-Q HV

Flexi-Q HV

Flexi-Q HV single-use auto-injector provides a fully-automated injection, with button activation and passive needle safety.

Flexi-Q HV incorporates a proprietary force-damping mechanism which allows the use of high spring force whilst protecting the glass PFS from mechanical damage.

It is the ultimate differentiating vehicle when considering the launch of a new drug or as a lifecycle management tool for an existing drug.

Pharmaceutical Company Advantages

Differentiation

• Fixed dose delivery of PFS fill volume:
• Configurable for 1mL or 2.25mL PFS
• Suitable for delivery of a wide range of drug viscosities, to 150cP according to injected volume and needle gauge
• Compatible with low to high drug viscosity
• Proprietary force-damping mechanism avoids damage to glass PFS, allowing use of elevated spring force for viscous drugs
• Passive needle safety to avoid needlestick injury
• Injection commences only when needle reaches intended depth
• Clear visual and audible confirmation throughout the injection process
• Skin sensor prevents inadvertant activation
• Easy and flexible customization options

Short regulatory path

• Proven technology platform; Compatible with standard glass PFS

Patient Benefits

Ease of use and adherence

• Fully automatic injection process
• Hidden needle and quiet injection to reduce anxiety and perceived pain
• Reduces needle phobia – by hiding the needle throughout the injection process

Safety

• Prevents needle-stick injuries - needle is protected throughout the injection process
• Reduced local skin reactions - Injects only into the correct depth (SC)
• Clear visual and audible confirmation of the injection progress from beginning to end
• Activation design options:

- Trigger button and body sensing - prevents inadvertent activation

- Activation by pressing against the skin - e.g. for emergency use
