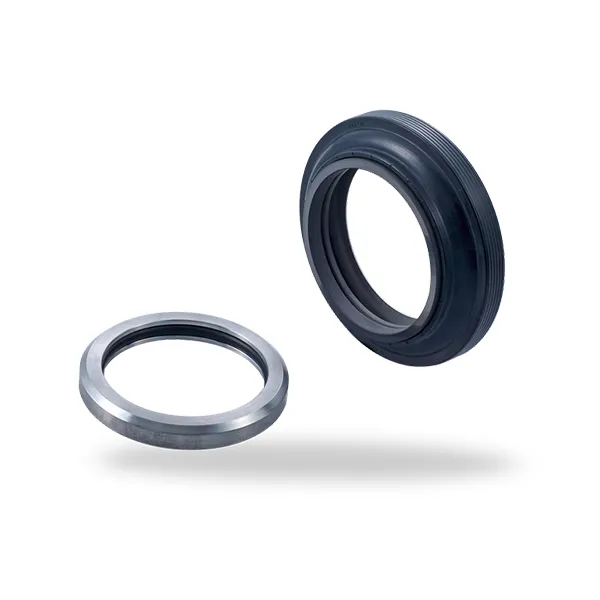

AX05

AX05

Features

• Unbalanced
• Independent on direction of rotation

Advantages

• Stationary springs
• Low space requirements
• Frictionally torque transmission
• Springs protected from the product
• Simple mounting

Operating range

Shaft diameter: d1 = … 65 mm (2.56")
Pressure: p1 = 0.3 bar (4.35 PSI)
Temperature:
t = -20 °C … 100 °C (-4 °F … 212 °F)
Sliding velocity: vg = 10 m/s (33 ft/s)

Materials

Seal face: Carbon graphite resin impregnated (B)
Secondary seals: NBR (P)
Springs: CrNi steel (F)
Metal parts: CrNi steel (F)

Recommended applications

• Process industry
• Oil and gas industry
• Refining technology
• Petrochemical industry
• Chemical industry
• Pharmaceutical industry
• Power plant technology
• Pulp and paper industry
• Water and waste water technology
• Mining industry
• Building services industry
• Food and beverage industry
• Shipbuilding
• Sugar industry
• Metal production and processing
