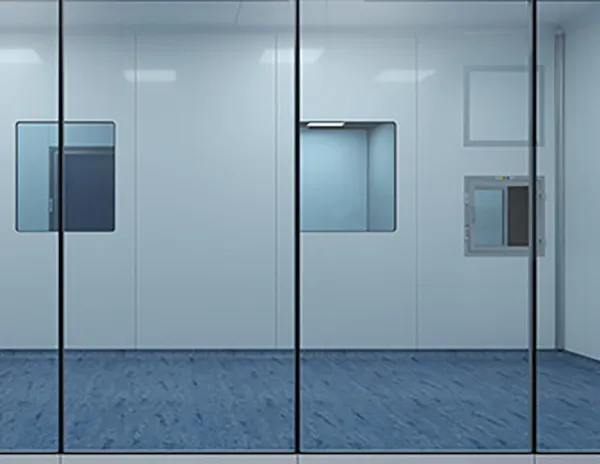

Glass panel walls
Glass panel walls
The cleanrooms glass panel wall system adopted by Easypharma is completely flush-mounted and perfectly integrated with the other partition walls that are installed adjacent to the same. A completely concealed fixing and installation system and a minimal perimeter frame complete the product. They are used for evident aesthetic reasons, boasting in their simplicity an excellent architectural solution but, above all, to make it easier to control and communicate in different environments and, last but not least, to allow visitors to visit the clean rooms directly from the corridors around the areas of production.
The thickness of the glass walls is always 45mm, composed of a double layer of 3+3mm laminated safety glass. The width and height of these glass walls, follow very precise rules envisaged by Easypharma, once again to distinguish the design of the product.
It is possible to customise the glass panels inserting screen prints with your company logo.
Fullglass glass panel walls for cleanrooms
Complete system with glass walls and doors perfectly flush with the partition walls. Consistent thickness of 45 mm.
To exploit the sunlight, to make supervision and communication easier, to allow your customers to view your work from the visitor corridor.
Standard module dimensions FULLGLASS: 1270 x h. 1960mm
Glass walls Halfglass for cleanrooms
Complete system with glass doors and curtain glass wall panelling 45 mm thick and 1000 mm high, fitted perfectly flush with the partition walls.
A different way of conceiving clean rooms, with large long glass panels 1100 mm from the ground, ideal in situations where there are work benches or production equipment.
Standard module dimensions HALFGLASS: 1270 x h. 1000mm
