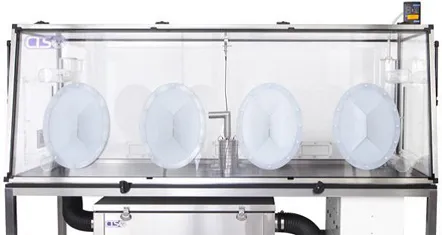

Climatezone
Climatezone enclosure systems are designed to provide a safe, climatically controlled environment for the handling of sensitive drug compounds and pharmaceutical testing.
The Climatezone range of enclosures use a unique patented air treatment system to allow the analyst to create a specific controlled temperature and humidity environment. The system creates a localised environment for testing which is much more flexible and cost effective than constructing a dedicated controlled laboratory environment.
Construction
• Stainless steel frame with removable clear panels • Side mounted transfer chamber (optional) • Black phenolic resin base • Air Treatment unit contains Heater, Chiller, Humidifier and Dehumidifier • Available in 1500mm, 2000mm and 2500mm widths- 700mm Deep x 1850mm High • Custom built sizes are also available • Gloved or iris port access available • Power Requirements: Single Phase 230V / 50Hz / 13A • Selectable temperature and humidity profiles.
— Temperature Range : 15⁰C – 85⁰C — Humidity Range : 15%RH – 85%RH• Control via integrated UKAS certified temperature and humidity sensors • Low humidity (<10%) capability • Air Handling – Closed Loop Operation – 300m3/hr • Safe change H14 HEPA filtered environment • Solvent Filtration (optional) • Airflow monitoring by hot wire anemometer • Visual / Audible low airflow alarm ensures operator safety
Other Features
• Independent temperature and humidity logging • Easy access for maintenance and equipment setup • Energy saving – no external HVAC control required • Tested, approved and widely used for and moisture sensitive powders • Ideal for inhalable drug testing where guaranteed climatic environments are required e.g. MDI and DPI impactor testing • Anti-static bars (optional) • Safe for use with HPAPIs • Mobile, flexible and low cost to maintain • Fully supported by Ireland based service team • DOP test and IQ/OQ Commissioning package included as standard
