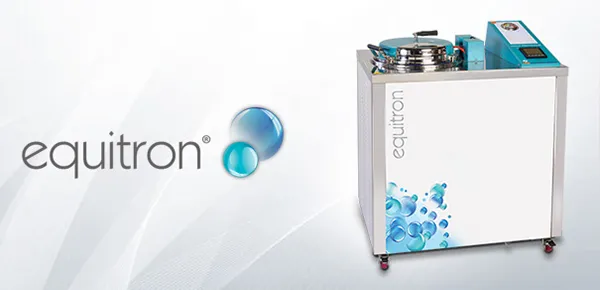

Media Preparator cum Autoclave

Media Preparator cum Autoclave

The EQUITRON Media Preparator is very useful for laboratories requiring 5-27 ltrs media / per day. EQUITRON Media Preparator eliminates all manual intervention’s required in the process of preparing media & ensures accurate temperature control & uniformity which result in best quality media.
Media is poured directly in to a special container in the Autoclave, which also has a magnetic stirrer. The media mixes in this, the temperature rises to user settable sterilizing temperature, holds for the desired time, then cools rapidly to the media pouring temperature between 45 & 65ºC and then, without opening the Autoclave, the desired volume of media can be dispensed aseptically and directly onto petri plates - placed in a Clean bench - by an external peristaltic pump.
Applications:

• Pharma & Biotech industries, Food research & quality assurance labs, Agriculture research & quality assurance lab, Health care & diagnostic labs, Veterinary diagnostic labs, Universities.

EQUITRON Advantages:

• Prepares liquid media agar - 3~9 lit in #7415-09 & 12~27 lit in #7415-27.
• It autoclaves/sterilizes & cools the media to user settable temperature within 60-110 minutes.
• Continuous stirring throughout the cycle assures proper mixing of media & uniformity.
• Separate large addition port provided for adding nutrient / blood.
• Controls actual media temperature as temperature probe is kept immersed in media.
• Media sterilization temperature range: up to 122°C.
• Media dispense temp range: 40~80°C.
• Removable / exchangeable media vessels & hence easy to clean and enables back to back preparation of different media.
• Inbuilt support pressure mechanism/system avoids over boiling of media during cooling phase.
• Online printing to DMP printer with complete cycle information & temperature readings.
