Automatic Print and Apply Corner

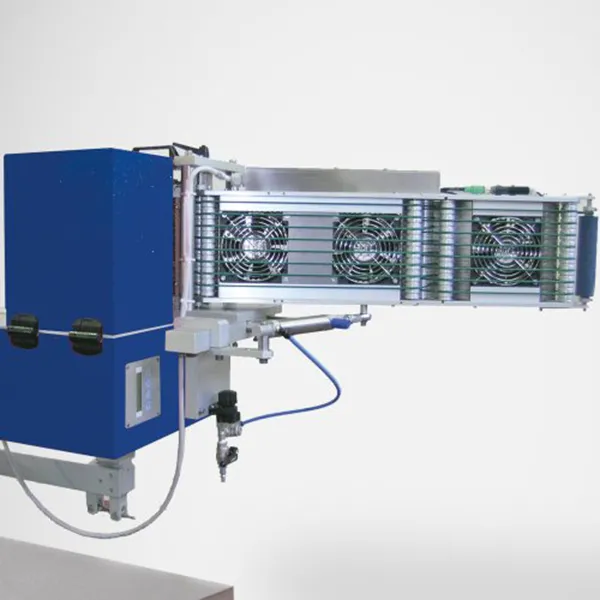

Automatic Print and Apply Corner

• Automatic print and apply machine applies the last printed label on the corner of moving boxes
• Corner  is an automatic print and apply system applying the last printed label on the  corner of boxes and products on the move.
• Corner prints any type of code, images and variable data coming from the packaging line and applied the last printed label.
• The core of the Corner print and apply system is an industrial  thermal tansfer printer  model Spider Plus 4” with dual processor electronics and equipped with a motorized belts applicator that keeps the label by vacuum system and releases it on the corner (front and side or front and top) of boxes and products on the move.
• Corner is available in 2 versions: Corner 4 has a 4″ width  (based on a thermal transfer printer model Spider Plus) and Corner 6 with a 6″ width  ( based on a thermal transfer printer model Jumbo Pus).
• This print and apply machines works with reels of thermal transfer ribbon  600 m long, in order to ensure high autonomy in working cycles.
• Resolution ≤ 8, 12 (only per Corner 4)  dots/mm
• Printing speed ≤ 250 mm/s
• Label width 104 mm (Corner 4), 160 mm  (Corner 6)

Features of the print and apply

• Drawing unit 120 mm (170 mm with the 6″ version)
• Label reel 280 mm
• Printhead with historical control 8 dot/mm
• Interfaces RS232, LAN Ethernet
• Display keyboard for machine configuration
• Inner rewinder for liner paper
• Inner clock for date/time
• Ethernet cable
• Windows driver
• Floating applicator with motorized belts
• Electric panel board
• Air unit treatment
• Control for photocell applicator

Ancillary devices

• Start/stop label
• Start photocell
• PC
• Programs for label layout
• Cables
• Interfaces
• Control applied label
• Base and support structure
• U-shaped support structure
• Safety guards
