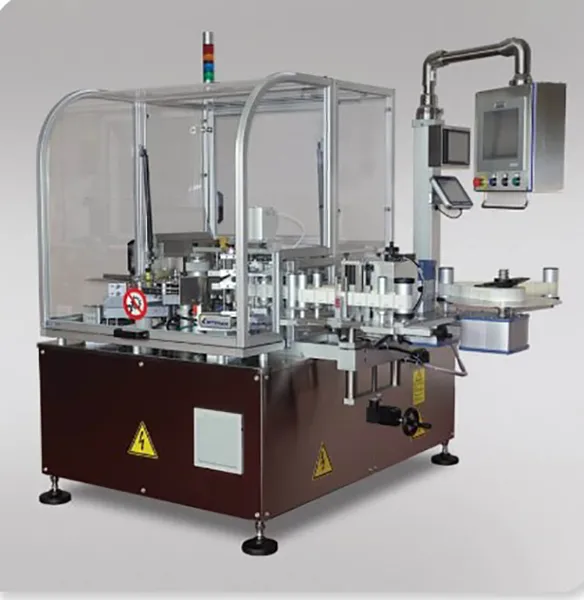

Pharmaceutical Ampoules Labelling Machine Etifiale Pro
The Etifiale Pro System is an automatic system for the labelling of pharmaceutical ampoules, which are manually loaded with a dedicated tray and then conveyed and channelled towards a carousel, equipped with special housings, up to the labelling station.
The label is applied to the product as it passes through, thanks to a special retractable blade that ensures maximum precision, and with the support of a rotating device that completes the application by rotating the ampoule on itself.
Features of the pharmaceutical ampoules labeller Etifiale Pro
The pharmaceutical ampoules labeller Etifiale Pro is equipped with a high-production Energy 100 labeller specific for the pharmaceutical sector, featuring a retrofitted stepper motor with magnetic encoder, which reaches a distribution speed up to 60 m/min.
The system features a UV barrier labelling control station, and can be integrated with a printing unit for overprinting variable data, and a vision system to control overprinting.
The Etifiale Pro labelling machine for pharmaceutical vials guarantees an advanced waste management thanks to an ejection device for unsuitable products, which are conveyed into an extractable drawer, and a control device which certifies that the product has been discarded.
The format change to adjust carousel and guides to a different size of ampoules is operated manually in a quick and simple way, without the aid of any tools.
The control panel is integrated upon an innovative mobile pivoting arm that allows wide freedom of movement. Equipped with advanced electronics with Siemens S7 PLC for the constant diagnosis of the peripherals according to the requirements of the sector, the panel can access the wiring diagrams and the instruction manual, allowing to manage the maintenance processes at best. Designed according to GMP guidelines, it also allows the management of FailSafe functions, production batch and the acquisition of CFR21/Events/Alarms reports and production data.
