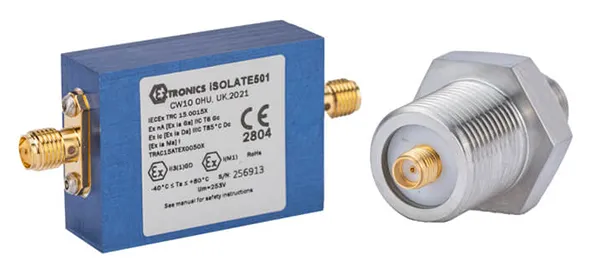

ISOLATE RF Isolator Kits
iSOLATE RF Isolator Kits
The iSOLATE kits containing the iSOLATE-501 and iSOLATE-CT provide the flexibility to customise the component setup for your hazardous area application. Making hazardous area wireless deployments quicker and simpler.
The iSOLATE501 is an ATEX, IECEx, and MET approved RF galvanic isolator for use in Zones 0, 1, 2/22 and mining applications. The iSOLATE-501 is designed to be used with Zone 1/ Division 1 explosion proof enclosures to ensure standard radio devices are intrinsically safe. The iSOLATE501 is small and lightweight making it ideal for inclusion in a variety of different applications.
The iSOLATE-CT is an explosion-proof RF connector transit for use in hazardous areas. The iSOLATE-CT works in conjunction with the iSOLATE-501 to enable the use of standard antennas for improved performance in hazardous areas.
iSOLATE1000 Kit
The iSOLATE1000 Kit consists of the following:
- 1x iSOLATE501
- 1x iSOLATE CT
iSOLATE1100 Kit
The iSOLATE1100 Kit consists of the following standard products:
- 1x iSOLATE501
- 1x iSOLATE CT
Options to select within this kit are:
- 1x RF adaptor/cable between iSOLATE components. User to specify cable length1 or adaptor type for direct mounting2
- 1x RF cable between iSOLATE501 and client wireless device. User to specify cable length1 and RF connection type for wireless device3
- 1x fixing plate to mount 2x, 3x or 4x iSOLATE501
1 Different cable lengths available – 150mm, 300mm or 500mm
2 Straight or right-angle adaptors available
3 RF plugs available – SMA, RP-SMA, N Type, RP-TNC
