Large Dust Collectors

Large Dust Collectors

Large Dust Collectors

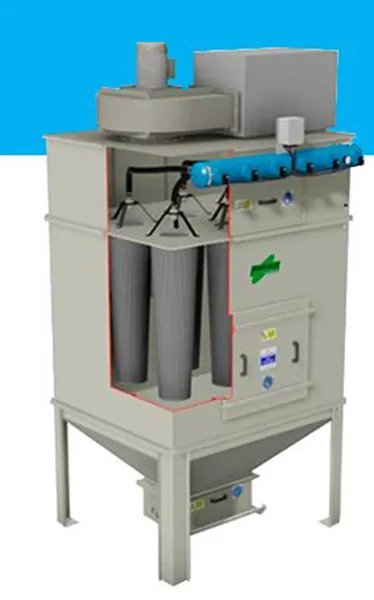

The Maxi Series of reverse pulse and rotating nozzle cleaned dust collector units are a compact solution for medium to large duty applications and use the 328mm diameter ‘deep pleat’ cartridge technology for maximum filter area.

The rugged carbon steel (or stainless steel) construction comes with options of explosion relief, single and double height filter elements and a range of dust discharge options such as rotary valve feed to FIBC etc.

The units can also utilise either ‘jet’ or ‘rotor’ cleaning depending on the requirements. Rotor cleaning gives the benefit of ‘off-line’ filter regeneration without stopping the filter unit or the customer’s production.

Unit formats can be varied to best suit the available footprint and other hopper discharge options are also available to cater for all requirements.

Features

  • Filter area from 20 to 480m²
  • Filter medias and pleat formats to suit individual applications
  • Standard collection bin with ‘cam lift’ bin location
  • Top or floor mounted fan sets
  • -0.02 to +0.04 Bar(g) operating pressure rating (higher available on request)
  • 0.2 Bar(g) pressure shock resistant (PSR) as standard
  • Differential pressure (clean on demand) controller option
  • ATEX options with integral explosion relief
  • Bin liner facility

Advantages

  • Minimal maintenance requirements and long filter life - reduces downtime and saves money
  • High efficiency, low emissions to atmosphere and guaranteed air quality
  • Versatile orientation offers flexibility
