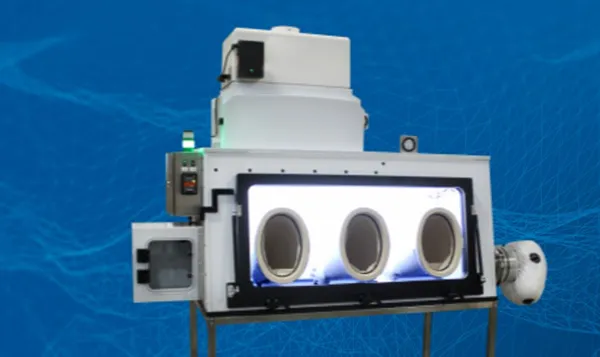

GLOVEBOX WORKSTATION
PROCESS
Weighing, dispensing, dissolution or handling of APIs and/or HPAPIs where personnel protection is required.
CONTAINMENT
Reaches containment measured in nanogram levels and from OEB 3–5, depending on application and quantity.
DESIGN
Provides adequate containment for equipment including balances, ovens, FTIR, sieves, and more.
SAFETY
The Glovebox Workstation provides containment for highly toxic applications using APIs, and HPAPIs, that need higher safety standards than an open face enclosure. Our engineered controls assist in the prevention of containment loss. Third-party testing has proven containment on these units to below 30ng/m³, dependent on application and quantity.
ISO 5 CLEANLINESS
The side mounted HEPA filter inlet creates a clean interior working environment that meets or exceeds ISO 5 for clean processing work.
UNIVERSAL SIDE/TRANSFER PORT
Side port with universal options including double-safe waste chute, continuous liner, RTP port, and more, available through customization. (The side port and transfer port can be placed on either side.) The transfer port provides ingress and egress of materials into and out of the enclosure without exposing the interior environment to contamination.
CONSTRUCTION
This unit gives the option of using acrylic (EGP Series) or glass (EGG Series) for the viewing panels. The superstructure is built using polypropylene and the dished phenolic resin base is designed to contain any spills.
LED LIGHT
An internal white LED light provides improved visibility inside of the enclosure with adjustable angles to direct light into the workspace. Also available in Amber LED.
HEPA FILTRATION
Equipped with a 4” inlet HEPA filter and 2 primary and 2 secondary 4” HEPA filters that can be recirculated into the lab or vented out through building exhaust.
FRONT LIFT DOOR
The glove ports sit in a front lift door that opens vertically to effectively load and unload equipment. This door is hinged for ease of use.
STANDARD SIZES
Available in 5’, 6’, and 7’ foot standard width options. All units are 36” deep and 24” of internal height. Customization available.
