Fluid Imaging Technologies

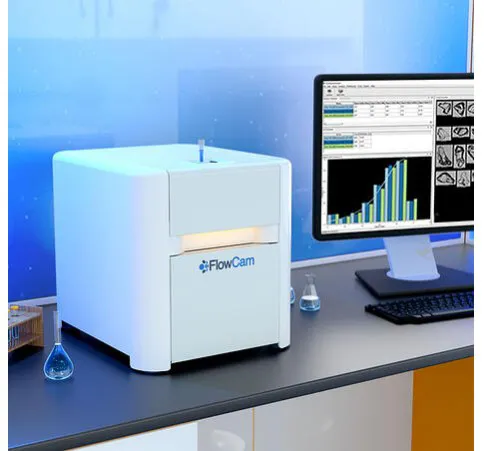

FlowCam 8000 Series

The FlowCam 8000 series combines the benefits of digital imaging, flow cytometry, and microscopy into a single instrument. Count and analyze tens of thousands of particles per minute and see your subvisible particles with superior image quality.

Experience industry-leading particle analysis instrumentation based on digital imaging technology. FlowCam is the first automated particle analysis instrument to use digital imaging for measuring size and shape (including 40+ morphological characteristics) of microscopic particles in a fluid medium. With applications in oceanographic research, municipal water, biopharmaceutical formulations, chemicals, oil and gas, biofuels, and many other markets, FlowCam continues to lead the way in imaging particle analysis.

Key benefits include:

• Large field of view and fast camera to provide robust data throughput
• Integrated auto-focus mechanism to simplify focusing and provide consistent, high-resolution images
• Redesigned optical path, high-powered laser, and more sensitive PMTs to enhance fluorescence signal analysis
• Interchangeable quick-connect flow cell holder to streamline operation

FlowCam 8000 Specifications:

• Magnification: 20X, 10X, 4X, 2X
• Camera resolution: 1920x1200 pixels, available in color and monochrome
• Minimum sample volume of 100 µl
• Autofocus capability
• Compatible with the ALH - Automated Liquid Handler
• Fluorescence trigger: excitation options (488nm, 532nm, 633nm) with 2 channel fluorescence detection
