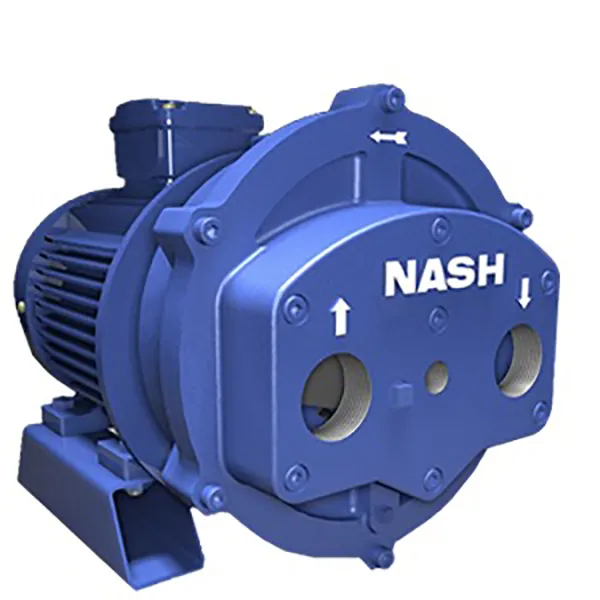

Liquid Ring Vacuum Pump Small Capacity-Vectra SX

Liquid Ring Vacuum Pump Small Capacity-Vectra SX

Liquid Ring Vacuum Pump Small Capacity-Vectra SX

Capacity 25 to 260 m3/h (15 to 150 ACFM)

The NASH Vectra SX liquid ring vacuum pump and compressor series delivers optimum performance with unprecedented production efficiencies. Available in 5 models, the capacities of the Vectra SX liquid ring vacuum pumps and compressors range from 25 to 260 m3/h (15 to 150 ACFM) , and have been designed to meet the widespread needs of the process industry.

Key characteristics:

• Low total cost
• 2in1: pump & compressor
• Reliable and efficient
• Demanding environments

Small Industrial Pumps Engineered For Process Industry Applications

The Vectra SX line of small industrial pumps delivers proven Nash reliability and performance to a broad range of industrial applications. With five low horsepower liquid ring pump models in the 1.5 to 10 HP range at 60 Hz (0.75 to 5.5 kW at 50Hz), these pump/compressor models provide the right solution for small capacity vacuum pump requirements.

Available in monoblock and lantern pump designs, the Vectra SX compact liquid ring vacuum pump uses commercial motors for a wide range of product configurations.

Reliable And Efficient With Proven Performance

Based on proven reliable NASH conical liquid ring pump designs, the Vectra series delivers superior performance and reliability through several engineering upgrades.

  • Built-in mechanical seals eliminate shaft leakage
  • Quiet operation
  • NASH patented Gas Scavenging Technology dramatically improves pump performance at high vacuum levels

Low Lifecycle And Utility Costs

Vectra SX small liquid ring vacuum pumps were designed to deliver low life cycle and utility costs. Features include:

  • The pump body is engineered to reduce forces on the pump shaft
  • Operating speeds that have been carefully selected to ensure minimal wear
  • High-efficiency performance
  • Long operating lifespan
  • Low water flow requirement and low power consumption
  • The motor does not operate in the service factor, further extending pump life

High-Performance Materials

The Vectra SX includes high-quality components such as

  • Precision cast 304 stainless steel rotor that is standard on all units
  • Cast iron pump includes a corrosion resistant pump casing to reduce internal corrosion and maintain peak operating performance
