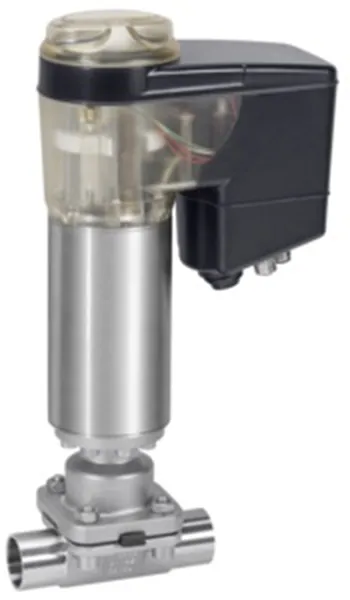

GEMU 649 Motorized diaphragm valve

GEMÜ 649Motorized diaphragm valve

Description

The GEMÜ 649 diaphragm valve is actuated by a motorized hollow shaft actuator. It is based on technology that does not use brushes or sensors and therefore guarantees high performance and a long service life. In addition to OPEN/CLOSE applications, the valve is ideal for variable and complex control applications. The actuator has an integrated web server for parameterization and diagnosis purposes.

Features

• Hermetic separation between medium and actuator
• Installation for optimized draining is possible
• Open/close function, positioner and process controller
• Force and speed are variably adjustable
• Extensive diagnostic functions
• Operable via web interface eSy-Web or Modbus TCP
• Various functions of add-on components and accessories are already integrated (e.g. position indicators, stroke limiters, etc.)

Technical Specifications

• Media temperature:-10 to 100 °C
• Sterilization temperature:max. 150 °C
• Ambient temperature:-10 to 60 °C
• Operating pressure :0 to 10 bar
• Nominal sizes:DN 10 to 65
• Body configurations:2/2-way body | i-body | Multi-port body | T body | Tank valve body | Welding configuration
• Connection types:Clamp | Flange | Spigot | Threaded connection
• Connection standards:ANSI | ASME | BS | DIN | EN | ISO | JIS | SMS
• Body materials:1.4408, investment casting material | 1.4435 (316L), forged material | 1.4435 (BN2), forged material | 1.4435, investment casting material | 1.4539 (904L), forged material | EN-GJL-250, cast iron material | EN-GJS-400-18-LT, SG iron material
• Body lining:Hard rubber | PFA | PP
• Diaphragm materials:CR | EPDM | FKM | NBR | PTFE/EPDM
• Supply voltage:24 V DC
• Actuating speed:max. 6 mm/s
• Protection class:IP 65
• Conformities:BSE/TSE | EAC | FDA | Oxygen | Reg. (EU) No. 10/2011 | Regulation (EC) No. 1935/2004 | Regulation (EC) No. 2023/2006 | TA Luft (German Clean Air Act) | USP
