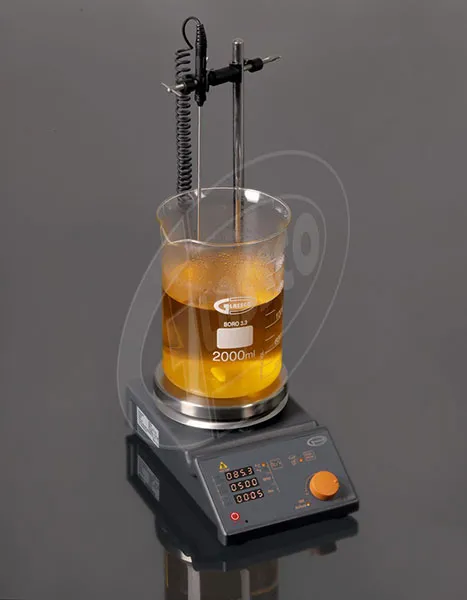

Magnetic Stirrer with Digital Hotplate, Alluminium Alloy Ceramic Coated Top

Magnetic Stirrer with Digital Hotplate, Alluminium Alloy Ceramic Coated Top

Aluminium Moulded Construction
Ceramic coated plate alloy, chemically resistant
Chemically resistant keypad
Even heat distribution at faster rate.
Thermal insulation for cool body operation.
Digital set up temperature controller with independent LED display.
Set safety cut-off for maximum temperature limit for top plate or probe.
Installed with double PT sensors for fail safe operating mechanism.
Hot top indicator for temperature above 50°C even when switched off.
Inclusive PT 100 temperature sensors probe.
Audible alarm at time cycle end for safety and ease of unsupervised operation.
Top plate Ø 145 mm to assist beaker upto 2000 ml & Adapter.
Compatible for use with all major brands top assemblies 1 Cavity, 3 Cavities or Multiple Cavities.
Digital setup of time with independent LED display.
Selection of plate and probe temperature.
Error code display at failures
Digital setup of RPM with independent LED diplay.
Count-up indication of minutes and hours.
Single multi-turn intelligent knob Operation.
Selection of Celsius and Fahrenheit.
High magnetic strength.

Technical Specification:

Heang Mantle Material	: Alluminium Alloy with ceramic coating
Dimension of heating plate	: Ø145mm
Three display windows for	: Temperature, RPM and time
Speed range	: 50-1500 RPM
Maximum srring bar Length	: Can use upto 80 mm bar (at lower speed)
Temperature Range	: Ambient to 350°C approx
Adjustable safety cut off	: 50-400°C
Control accuracy of PT100	: ± 1K
Dimensions of hot plate body	: 273x160x102mm
Weight of body	: 3.3 kgs
Permissible ambient Temperature	: 5- 40 °C
Permissible relave moisture	: 80%
RS 232 interface	: Yes (for programming)
IP Class	: 32

Included Accessory:

Cat. No.	Accessories
850.800.01	Rod Stainless Steel length 400 mm, Ø 12 mm
850.800.02	Magnetic Stirring bar 35 mm x 9 mm
850.800.03	Moulded PT 100 sensor probe
850.800.04	Boss Head

Optional Accessory:

Cat. No.	Accessory (Aluminum Adapter for Round Bot tom Flasks) Flask Capacity (ml)	Places
610.ADP.00	10ml	8
610.ADP.01	25ml	7
610.ADP.02	50ml	4
610.ADP.03	100ml	1
