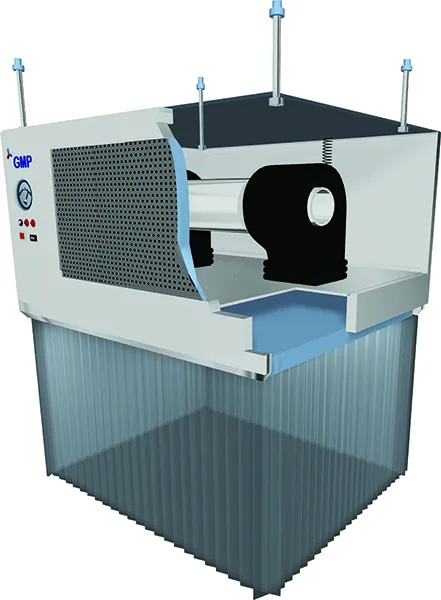

Vertical Laminar AirFlow Ceiling Suspended

Vertical Laminar AirFlow Ceiling Suspended

Laminar Air Flows are designed to offer the highest product protection for samples and processes by providing ISO Class 5 particle free work area. The LAFs with various air-flow patterns offer proven protection for the samples and processes. The work area is continuously supplied with positive pressure HEPA filtered air flow.

General Specifications

• Two Stage filtration
  • EU6 – Prefilter (95% down to 5 micron)
  • EU14 - HEPA Filter (99.999% down to 0.3 micron) at supply position
• Statically & Dynamically balanced Motor-blower with suspension arrangement to reduce noise level
• SS work table with due reinforcement
• Glass side panels
• Fluorescent Lights with Milky White Diffuser
• Differential Pressure Gauge : 1 No
• ON/OFF Switches
• Clean Down Timer with Operation HOLD indicator
• DOP Test Port
• 5/15 Amp Switch Socket for external equipment

Operating Conditions

• Air cleanliness : ISO Class 5 (ISO 14644-1:1999 (E))
• Air Velocities : 0.45 ± 0.05 mps
• Air Flow : Vertical
• Noise Level : Less than 67 dB
• Vibration Level : Minimum
• Light intensity : > 300 lux
• POWER SUPPLY : 230V AC 1-Ø 50HZ

Options and Accessories

A wide range of configurations to suit any containment application :

• Front doors (hinged/pneumatic cylinder)
• U. V. Light with Hour Meter
• Air / Gas Cock
• Night Mode Operation
• Velocity display with alarms (audible and visible)
• Filter blocked alarms (audible and visible)
• Explosion proof electrics for Flame-proof applications
