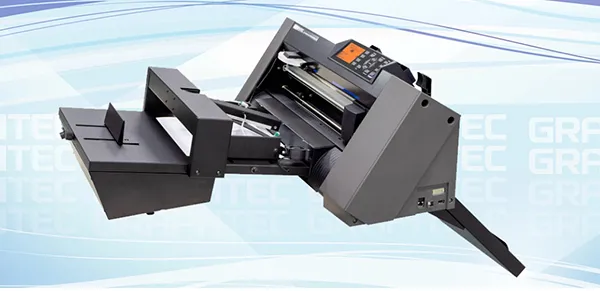

F-MARK2 Automatic Sheet Feeder Unit
F-MARK2 Automatic Sheet Feeder Unit
The F-MARK2 Automatic Sheet Feeder Unit, which includes the Graphtec CE7000-40 cutter, is designed to automatically feed and contour cut media size up to 13" x 19" without the need for an operator. An arm with air suction cups lifts the media from the supply tray and places it in the cutter. Included Software and CCD Camera accurately align media for contour / perforation cutting of pre-printed graphics - efficiently freeing up labor to work on other tasks. Once completed, each sheet neatly falls into the Exit Tray. Additional sheets of the same design can be loaded during cutting without resending the job from a computer, further enhancing productivity.
It can handle up to 200 sheets (depend on the thickness) of media in a continuous cycle but with the ability to add further sheets as required without interrupting the cutting process. This is a capability that sets the F-Mark2 Automatic Sheet Feeder Unit apart from any comparable sheet-fed system.
450 Grams of down force enable users to produce small and medium size runs of: labels, business cards, heat transfer apparel, and more. Using Adobe Illustrator and CorelDraw EPS file types, simply add registration marks to your design and import to the iMark Plus Software for fast, high quality results.
Cut labels and cut time with the new Graphtec F-MARK2 Automatic Sheet Feeder Unit.
The Graphtec F-Mark2 Automatic Sheet Feeder Unit includes the CE7000-40 and is designed to automatically feed and contour cut media size up to 13" x 19"without the need for an operator. Equipped with precision iMark CCD camera technology the CCD camera allows for quick reading of crop marks with a precision grade of 0.2 mm.
It can handle up to 200 sheets (depending on the thickness) of media in a continuous cycle, but with the ability to add further sheets as required without interrupting the cutting process.
This is a capability that sets the Graphtec F-Mark2 Automatic Sheet Feeder apart from any comparable sheet-fed system.
