Single Row Magnetic Grid Box

Single Row Magnetic Grid Box

The Greenwood Single Row Magnetic Grid Box is an inline magnetic separator used in gravity feed chutes for the extraction of ferrous particles within powder or granular materials being processed.

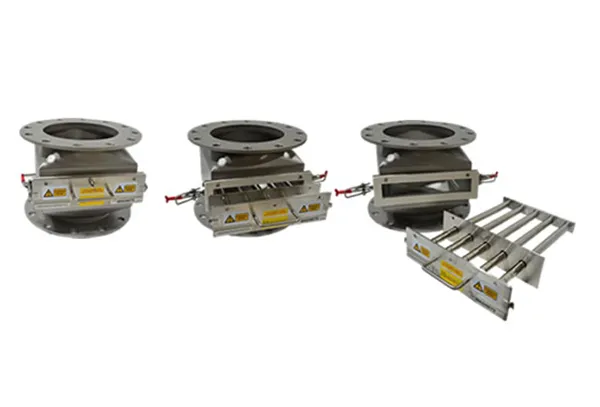

Manufactured in stainless steel, the flanged housing enables easy installation. The drawer slides out completely, giving access to the magnets. Once the drawer is removed, the inner tubes containing powerful rare earth magnets, slide out causing the debris to fall off enabling easy and effective cleaning.

FEATURES

• Easily installed
• Direct access to magnets in chute
• Extremely easy to clean
• High intensity Rare Earth magnets
• Available with flanges to suit square and round pipelines
• Available with angle deflectors above and between the tubes for heavy contamination

SPECIFICATION

• Standard height 300mm (with transitions)
• Standard height 150mm (without transitions)
• Can be manufactured to food industry standards
• Manufactured to your specific dimensions
• Available with several detachable drawers
• Tube spacing set according to your product being processed and rate of flow
• Magnet strength - standard up to 12,000 gauss, easy-clean tubes 10,000 gauss

We also manufacture various other types of grid boxes depending upon the application required. Also see our double row easy clean grid box.
