Harsiddh Industries

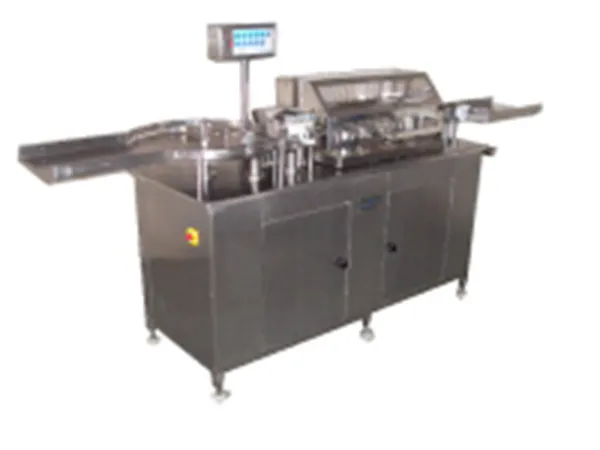

AUTO. LINEAR VIAL WAHSING MACHINE

AUTO. LINEAR VIAL WAHSING MACHINE

• Suitable for washing of Vials (2ml to 30ml) (dia. 14mm to 35mm)
• All Contact parts made out from SS 316
• Entire frame covers &non-contact parts made out from SS 304
• Needles enter in to the container during washing cycle to meet cGMP requirement
• Low water consumption
• Quick change over of parts for other size of containers
• Complete flexibility with user for washing cycle
• Machine provides 4 water washes, 3 air washes and 1 silicon (Optional)

OPERATION

• Containers feed from the decartoning station (optional) are received on a unscrambler through Visual Inspection Unit (optional). An infeed worm inverts container as neck down position and feeds them through specially design indexing device. The devicecarry the container forward and stops.
• Nozzles carrier enters into the container and activates the jet of water/air.  The air/water flow is deactivated after the washing cycle is over.
• Device get indexing for next wash.
• A separate pumping station (optional) gives the right quantum of water at the desired pressure.
• In the absence of separate pumping station we can provide the recirculation & siliconising system on request.
• Washed container are again inverted to neck upward position to collect in trays/directly feed to tunnel.
