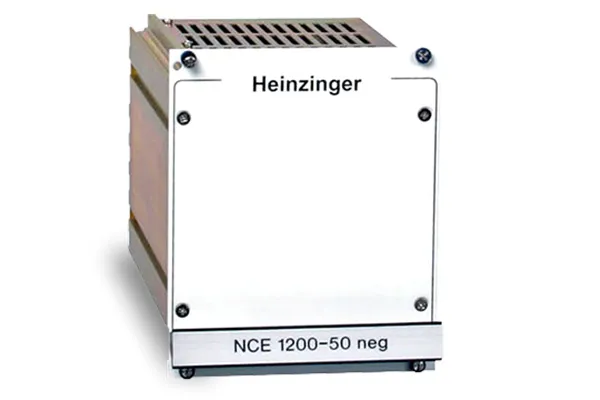

LNCE-Series & NCE-Series
LNCE-Series & NCE-Series
- 3u 19" cassette
- remote controllable via analogue interface
- continuous circuit proof
- DC or AC Input
High-voltage modules and high-voltage cassettes
Compact and precise DC-high-voltage power supply for many different DC-uses
High-voltage modules and high-voltage cassettes are available as DC/DC- or AC/DC-converter ranges. High-voltage cassettes are built as 3HE/19"-cassettes, while the high-voltage modules are either Euro boards or installed in wall housings. The high-voltage power supplies are particularly compact in size and can be integrated into the customer's systems easily. They are ideal for the following sectors:
- Research
- Development
- Industrial sector
- Medical technology
- Pharmaceutical industry
- Power generationAll high-voltage modules have an analog interface with 0 … 10 V for
control and to read out values. This way, the high-voltage cassettes and high-voltage modules can be adjusted as desired to suit many different applications. All high-voltage modules and high-voltage cassettes can additionally be ordered with positive or negative polarity. All high-voltage modules and high-voltage cassettes from Heinzinger can be controlled by voltage or current input. They are protected against short circuits by default.
The high-voltage modules and high-voltage cassettes with Euro boards are suitable for:
- HV tests
- Electrophoresis
- Basic research
- Particle experiments
- Production processes
- Chemical processes
- Accelerator
- Laboratory
- Electrostatic
- Filter
- Air cleaning
- Ionization
- Control Systems
High-voltage cassettes of the Heinzinger LNCE series, DC/DC-converters
The compact high-voltage cassettes of the LNCE series require an input voltage of 24 V DC. Modules for up to 20 KV are available in multiple output categories. The high-voltage cassettes supply precise voltages at up to 20 KV and a power of up to 30 W. They therefore are ideal for applications using a lower power, as is the case in HV tests, electrostatic applications or in quality assurance.
Highlights
NCE
- Output voltage up to 30,000 Volts
- Output current up to 600mA
- Output power 30 and 60 Watt
- 19" cassette, 3U
- Low ripple
- Continuous short circuit proof
- Automatic transition from voltage to current source mode
- Remote controllable and extendable via integrated analog interface, for voltage and current setup as well as acknowledgement
- Output for U and I source mode indication
- Customized versions possible (e.g. built in U or I-Potentiometer)
LNCE
- Output voltage up to 20,000 Volts
- Output current up to 100mA
- Output power up 30 Watt
- 19" cartridge, 3U, 14 slots
- Input voltage 24V DC
- Low ripple
- Continuous short circuit proof
- Automatic transition from voltage to current source mode
- Remote controllable and extendable by means of the integrated analog interface 0...10V, for voltage and current setup and acknowledgement
- Stand by input for HV output on/off
HNCE
- Output voltage up to 20,000 Volt
- Output current up to 30mA
- also as HNCEhp versions with lower ripple and increased stability up to 0.001%
- Input voltage 24V DC
- Modular design
- Low ripple
- Continuous short circuit proof
- Automatic transition from voltage to current source mode
- Remote controllable and extendable by means of the integrated 0…10V analog interface for voltage and current setup and acknowledgement
