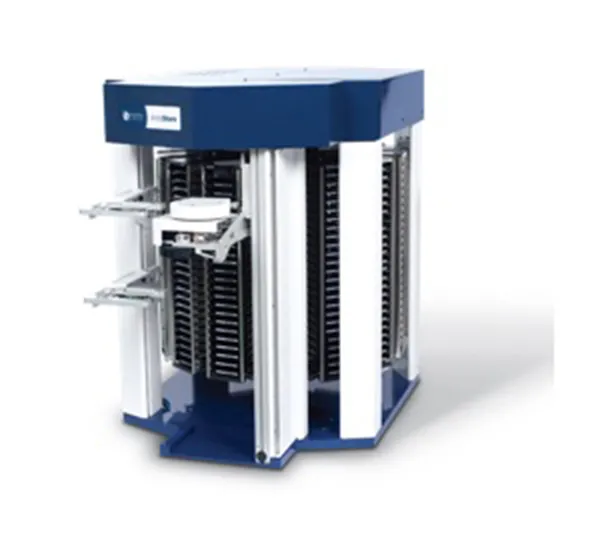

Random Access Sample Storage Carousel
AmbiStore™
Fast
AmbiStore delivers plates in 12 seconds (and stores them just as speedily). With up to six separate transfer nests, AmbiStore is designed to wait for the robot, not the other way around. Auto-id of barcoded stackers prevents crashing of the spatula due to user configuration mistakes.
Friendly
Clean
All electronics are at the top of the instrument, so there’s no risk of spilling contaminants into a dangerous place.
Additional Features
SpecificationsToggle content
AmbiStore D
AmbiStore M
Dimensions (H x W x L)
1041 x 737 x 838 mm
41 x 29 x 33 in
1626 x 737 x 838 mm
64 x 29 x 33 in
Weight (empty)
147 kg
325 lbs
176 kg
387 lbs
Capacity
14 hotels
462 1536-well plates
336 96/384-well plates
140 Deep-well plates
126 Tip boxes
28 hotels
924 1536-well plates
672 96/384-well plates
280 Deep-well plates
252 Tip boxes
Power
120/240VAC
50/60Hz
Compressed Air
552 kPa
80 psi
Communications
Ethernet
