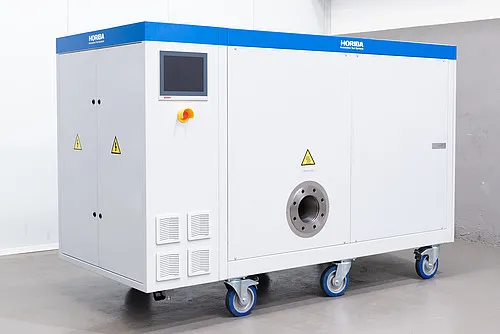

The MEDAS system is a compact altitude simulator that reproduces a wide range of environmental conditions. It allows for testing light- to heavy-duty vehicles, including Non-Road Mobile Machinery (NRMM). It is ideally suited for a range of testing applications, such as durability, RDE replication, emission tests and mapping as well as tests from component to vehicle level. The patented technology inside the MEDAS system allows dynamic changes on the simulated atmosphere with high accuracy. The system can also be moved between different test cells due to its compact design.
MEDAS enables measurements up to 5,000m with a simulated temperature range from -45 to 50 °C (with the MEDAS Temperature Module) and a simulated humdity range of 5 to 95 % (with the MEDAS Humidity Module).
Suitable for different test cell configurations (e. g. engine, vehicle, powertrain)
Full integration with test cell control through CAN
Two MEDAS systems can be coupled in parallel to multiply the mass flow
No limit on minimum engine flow rate
Additional options available, e. g. noise insulation
