Hosokawa Micron Powder Systems

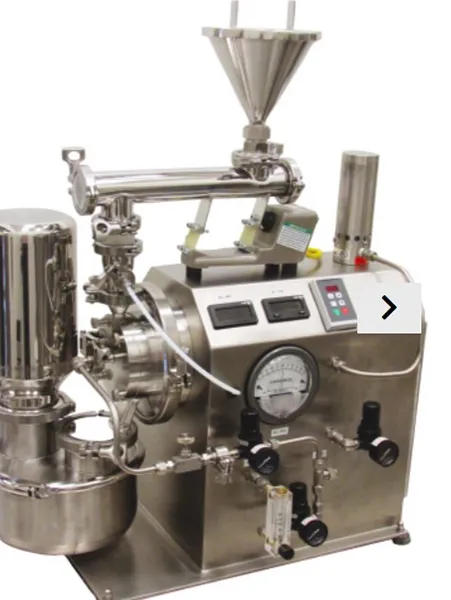

MIKRO LPM LABORATORY PIN MILL

The Mikro® LPM Laboratory Pin Mill is the smallest model in the UMP line used for small sample grinding of 5 to 100 grams. The device is capable of producing materials down to D97 = 35 ?m. This compact model has self-contained controls, product collection and can be operated in a small glove box or flexible isolator.

Design & Options:

• ½ to 2 HP available
• Cryogenic operation available
• Fabricated 316 Stainless Steel design
• FDA approved seals ad gaskets
• Up to 36,000 RPMs with Pin Rotor
• Teflon coated internal components (optional)
• Isolator mount version
• 10 liter discharge container
• Easy to clean design
• Pin Rotor or Fan Beater Rotors available
• Suitable for Chemicals, Food, Minerals & Pharmaceuticals
