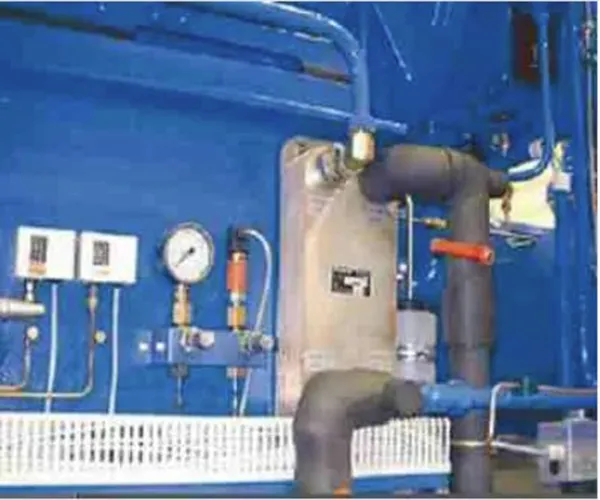

HRS Funke Brazed Plate Heat Exchanger
HRS Funke Brazed Plate Heat Exchanger
HRS Process Systems Ltd. have acquired exclusive rights by the way of license manufacturing agreement for design, manufacture, supply and service of Plate Heat Exchangers, with FUNKE Waermaustauscher GmbH!
Technology
Our brazed plate heat exchangers (PHE) consist of embossed stainless steel plates that fit into one another and are vacuum brazed with copper or nickel to form a compact pressure-proof unit. During assembly, every second plate is staggered by an angle of 180° creating specific gaps for product flow.
The design and construction of brazed plate heat exchangers enable to create a highly turbulent flow for the most effective heat transfer, even in case of low volumetric flow rates and reduces the risk of fouling to a minimum.
These brazed plate heat exchangers can perform in the range of 2.0 to 6000 kW.
PHE Material
For plates, the material is stainless steel 1.4401 / 316
Solder is with copper or nickel as per process requirement and best material compatibility.
Media
Brazed PHEs are most suitable for oil/ water, water/ water, gas/ liquid (condensation), or such specific media as per process and design.
The maximum operating pressure for efficient performance is up to 30 bar; the Operating temperature is between -160°C to a maximum of +200°C.
