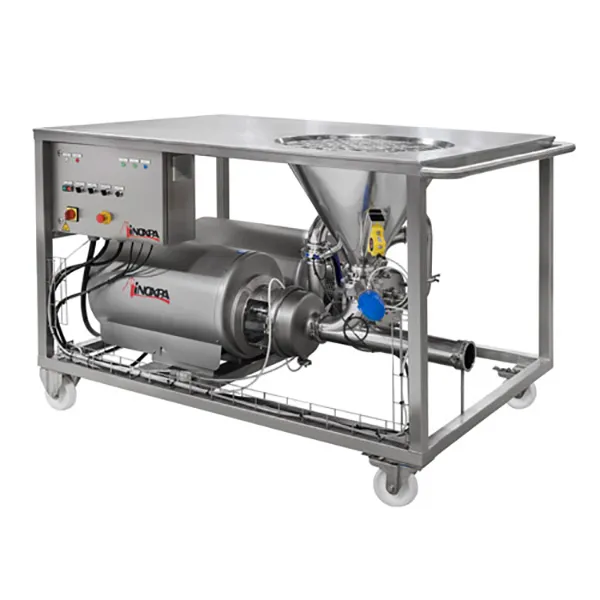

MM Table Blender
MM Table Blender
The table blender is used to dissolve solids / powders in recirculated liquids. It has a wide range of applications, for example, preparation of pharmaceutical syrops or dissolution of pectin in glucose for marmelade production. Every model has an option with an in-line mixer for a complete dissolution of possible lumps. The typical applications are reconstitution or stabilization of milk in the production of dairy products, and dissolution of sugar for the production of syrup in the beverage industries.
Operating principle
The table blender is a compact unit, it consists of a centrifugal pump with a venturi system at the suction side and a hopper with a butterfly valve at the upper part to add solids / powders to the pumped liquid. In this blender, the suction and ventury system are set horizontally. If necessary, an in-line mixer can be installed after the centrifugal pump to reduce the size of possible lumps.
The venturi system and the suction of the pump create depression at the base of the hopper. When the valve of the hopper opens, the solids are drawn from the hopper and are totally dissolved when they pass through the casing of the pump.
To achieve the best possible dissolution, it is recommended to recirculate the product (batch production) till all the solid / powder product is suctioned and then, when the solid product is completely incorporated into the liquid, continue recirculating the product for a while. In some cases, the blender can be used in-line depending on the solid product to add and the required level of dissolution.
Design and features
Very simple and versatile equipment for a fast and homogeneous mixing of a wide range of solid products without any contact with atmosphere.
Hygienic design.
ISO 2852 Clamp connections for easy assembly/disassembly.
Cleaning and disinfection without disassembling the unit.
Complete mixing with recirculation.
Manually actuated butterfly valve for hopper.
Optional in-line mixer for total dissolution of possible lumps in the end product.
Hopper welded to the table with a totally smooth easy-to-clean surface.
St.St. control panel with Stop/Start button and motor protection.
Skid with wheels: 2 rotating + 2 fixed with brakes.
Clamp drain port for total drainage of the skid.
Materials
Parts in contact with the product AISI 316L (1.4404)
Other steel parts AISI 304 (1.4301)
Gaskets in contact with the product EPDM
Mechanical seal:
Rotary part Silicon carbide (SiC)
Stationary part Silicon carbide (SiC)
Gaskets EPDM
Surface finish:
Internal and hopper Bright polish Ra ≤ 0,8 μm
External, structure and upper base Matt
Options
Double mechanical seal.
Solenoid valve for the seal cooling system.
Gaskets: FPM or PTFE.
Connections: DIN, SMS.
Vibrator for hopper.
Frequency converter for the centrifugal pump.
Pneumatically actuated valve + lower level sensor for solids.
Hygienic upper level sensor for solids.
Control panel for the vibrator, level sensors, frequency converter and automated valve.
Grid for hopper.
