INTEGRATED CLEANROOM TECHNOLOGIES PRIVATE LIMITED

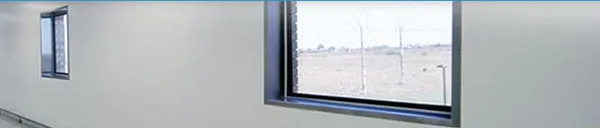

WALL PANEL SYSTEM

Wall panels are extremely critical for Cleanrooms and are hence a core component of our product offerings. Standard specifications are given below, but note that ICLEAN wall panels can also be customized per requirement.

SPECIFICATIONS

• Standard size : 1200 X 3000mm (Other sizes customizable on request)
• MOC : GI Pre-Coated / GI powder-coated / SS -304
• Thickness: 0.6 / 0.8 / 1mm
• Skin Type: GPSP sheet / Aluminium sheet
• Panel Thickness: 50 / 60 / 80 / 100mm
• Fastened to extruded aluminium / GI profiles
• Fire retardant PUF / ROCKWOOL as In-fill (Other In-Fill options available on request)
• Factory- made cutouts for integration with Pass boxes, Autoclaves, etc.
• Factory- made cutouts for in-built power sockets and Magnehelic manometers
