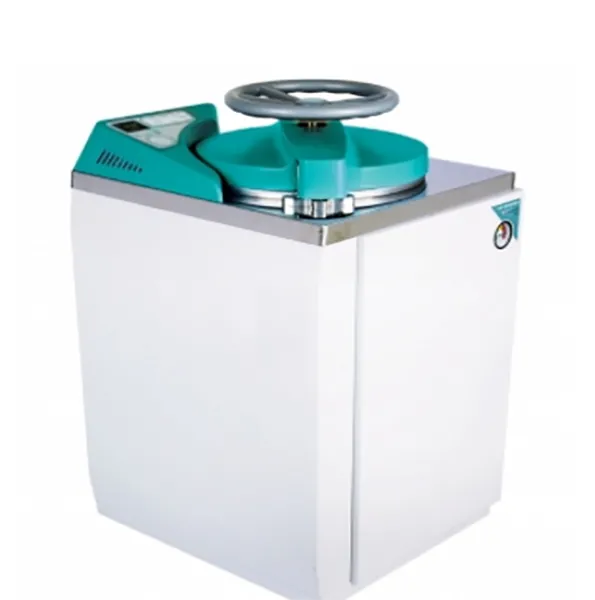

Autoclaves
Performance
Microprocessor controller and temperature calibration function allows for high precision temperature control.
- Sterilization temperature at 110 to 123°C
- Melting* temperature at 60 to 100°C
* Liquefaction of coagulated agar media.
Automatic sterilization system for unattended operation.
- Heating > Check safe > Sterilization > Sterilization safe > Exhausting > End
Convenient operation modes for various uses.
- Standard modes and program modes are listed in detail as below tables.
Temperature calibration function.
Standard modesTemp.(°C)Time(min.)
Decontamination12135
Solids sterilization12120
Liquids sterilization12115
Melting10030
Program modesTemp.(°C)Time(min.)
Sterilization 1110 to 1231 to 999
Sterilization 2110 to 1231 to 999
Liquid sterilization110 to 1231 to 999
Melting60 to 1001 to 999
Convenience
Conveniently monitored by an independent control display, sterilization process display, and pressure gauge.
- VFD for visualization of temp, pressure(optional), timer, warning alert checks.
- LED lamps for sterilization process check.
- Easy pressure check with the standard gauge attached to the front.
Vertical type autoclaves which allow for top loading are suitable for high volume sterilization.
- Baskets are stackable two high or even more levels, which secure inside the chamber space requirements.
Low-maintenance
- The chamber is constructed of stainless steel which is superiorly resistant to corrosion.
- Easy to replace silicone gasket.
Convenient documentation with the optional data recorder.
- Dot type recorder(6 point) allows for precise documentation.
Safety
Mechanical safety devices
- Over current protection.
- Over temperature protection by automatic power cutoff.
- Over pressure protection by automatic and manual safety valve.
Safety warning systems
- Over temperature warning.
- Low temperature warning.
- Low water level warning.
- Low heat warning if the temperature does not reach the sterilization or melting temperature.
- Sterilization fail warning if the operation is unexpectedly stopped during sterilization process.
