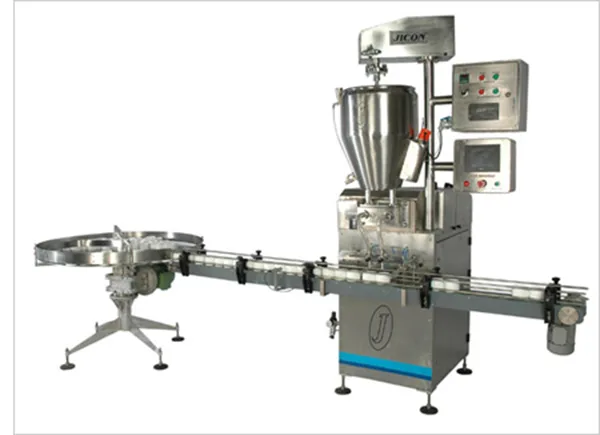

ATF-I is designed to fill and seal aluminium / lami / plastic tubes at high speeds. The machine is suitable mainly for pharmaceutical, cosmetic and food industry. Machine can be used for filling of cream, ointment, gel, paste, balm and other similar viscous products by means of a volumetric dosing system.
The machine is of fully enclosed construction with a rotary index table and single filling head.
Jicon Industries are leading Pharmaceutical Machines Manufacturers and Exporters in Nepal, Bangladesh, Sri Lanka, Philippines, Afghanistan, Iran, Iraq, Syria, Jordan, Turkey, Israel, United Arab Emirates, Saudi Arabia, Yemen, Egypt, Algeria, Sudan, Ethiopia, Kenya, Uganda, Tanzania, South Africa, Nigeria, Ghana, Russia, United States of America, El Salvador.
Machine is available in 3 configurations –
- for aluminium tubes
- for lami / plastic tubes
- for alu + lami tubes
|
Construction
|
Fully enclosed
|
|
Operation System
|
Single Head, Rotary Index Table
|
|
Output
|
2400 tubes per hour for lami tubes
3000 tubes per hour for alu tubes
|
|
Tube Diameter
|
Minimum 12 mm to maximum 35 mm for alu, maximum 50 mm for lami
|
|
Tube Length
|
Minimum 50 mm to maximum 220 mm
|
|
Tube Loading
|
Automatic through a tube holding tray (tray – also known as ‘ tube loading hopper ’ – to be manually loaded)
|
|
Tube Orientation
|
Automatic, electronically controlled
|
|
Tube Cleaning
|
By compressed air blow
|
|
Product Hopper
|
S.S. 304, 50 liters capacity. {Water jacket with electrical heating and hot water circulation pump optional}
|
|
Product Agitator
|
Slow speed agitator for stirring of product in hopper as an option
|
|
Filling Nozzle
|
Fixed nozzle, with tube lifting at filling station – to lift up the tube so that nozzle gets inserted inside tube while filling. {Diving nozzle optional}. NO−TUBE−NO−FILL system incorporated.
|
|
Tail Cutting
|
By suck-back method (to prevent dripping after filling operation)
|
|
Dozing Range
|
a) 3 to 30 ml
b) 30 to 100 ml
c) 100 to 250 ml
|
|
Tube Sealing
|
By hot air tool for plastic and lami tubes
By double fold and crimping tool for aluminium tubes
|
|
Batch Code Embossing
|
In sealing jaws for plastic / lami tubes and in crimping jaws for alu tubes
|
|
Trim Waste
|
Collected in a container on machine
|
|
Tube Ejection
|
Automatic, through a discharge chute for collection
|
