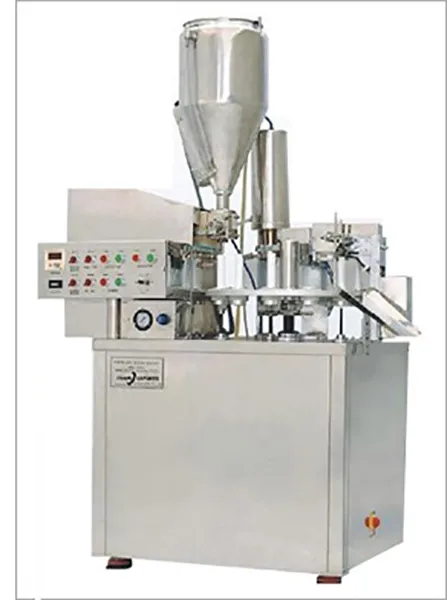

Semi Automatic Tube Filling Machine
SATF is designed to fill and seal aluminium / plastic / lami tubes. The machine is suitable mainly for pharmaceutical, cosmetic and food industry. Machine can be used for filling of cream, ointment, gel, paste, balm and other similar viscous products by means of a volumetric dosing system.
Machine available in two configurations:
Operation System
Single Head, Rotary Index Table
Output
up to 1800 tubes per hour for alu tubes / 2400 tubes per hour for lami and plastic tubes
Product Handled
Cream, ointment, gel, paste, balm and other similar viscous products.
Tube Diameter
Minimum 12 mm to maximum 50 mm
Tube Length
Minimum 50 mm to maximum 220 mm
Tube Loading
Manual
Tube Orientation
Product Hopper
S.S. 304, 50 liters capacity. {Water jacket with electrical heating and hot water circulation pump optional}
Product Agitator
Slow speed agitator for stirring of product in hopper as an option
Filling Nozzle
Fixed nozzle, with tube lifting at filling station – to lift up the tube so that nozzle gets inserted inside tube while filling. {Diving nozzle optional}. NO−TUBE−NO−FILL system incorporated.
Tail Cutting
By suck-back method (to prevent dripping after filling operation)
Dozing Range
a) 3 to 30 ml b) 30 to 100 ml c) 100 to 250 ml
Tube Sealing
By hot air tool for plastic and lami tubes By double fold and crimping tool for aluminium tubes
Batch Code Embossing
In crimping jaws for alu tubes In sealing jaws for plastic / lami tubes
Tube Ejection
Automatic, through a discharge chute for collection
