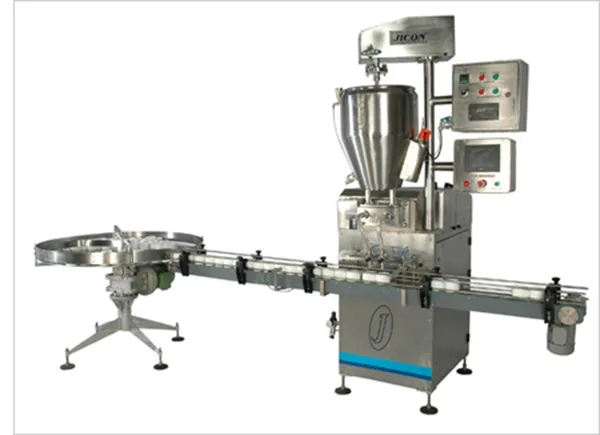

Automatic Container Filling Machine
Automatic Container Filling Machine (For Creams And Ointments)
High speed automatic multi head container filling machine for filling cream, paste, ointment, wax polish, grease, jam, sauce etc. in plastic or tin containers or jars, bottles etc.
Containers like flat tins or bottles are loaded on turntable from where they are transferred onto a conveyor belt. They are then indexed into the filling station. No-Container-No-Fill device will stop dozing operation if containers are not in place. SS jacketed hopper with 2 kw heater and stirrer can be provided as an option to facilitate easy filling of highly viscous products. Filled containers are transported over conveyor for further operations and handling.
Jicon Industries are leading Pharmaceutical Machines Manufacturers and Exporters in Nepal, Bangladesh, Sri Lanka, Philippines, Afghanistan, Iran, Iraq, Syria, Jordan, Turkey, Israel, United Arab Emirates, Saudi Arabia, Yemen, Egypt, Algeria, Sudan, Ethiopia, Kenya, Uganda, Tanzania, South Africa, Nigeria, Ghana, Russia, United States of America, El Salvador.
Features
- PLC Controlled machine with colour Touch Screen
- Can fill creams of various viscosity
- No – Container – No – Fill interlock
- Tail Cutting arrangement after dozing
- Easy change over from one size to another
- Fill quantity can be accurately adjusted
- Fill accuracy up to ±0.5%
- Simple in operation and maintenance
- Jacketed hopper with stirrer for high viscosity products can be provided as an option
|
MODEL
|
DOZER
|
Fill Range
|
Out Put
|
|
CF-2
|
Double Head
|
5 to 500 ml
|
10 to 60 per min
|
|
CF-3
|
Triple Head
|
5 to 200 ml
|
40 to 90 per min
|
|
CF-4
|
Four Head
|
5 to 50 ml
|
80 to 120 per min
|
* Fill Range with interchangeable Filling Syringe of different capacity
# Output depends on fill quantity and material characteristics.
