SCRAPPED SURFACE HEAT EXCHANGERS-ASTUTE
ASTUTE is a Scraped Surface Heat Exchanger with hygienic design and largest heat transfer area per unit volume over the conventional one. Astute is a compartmentalized heat exchanger with forced fluid displacement and with scraped surface for heat transfer.

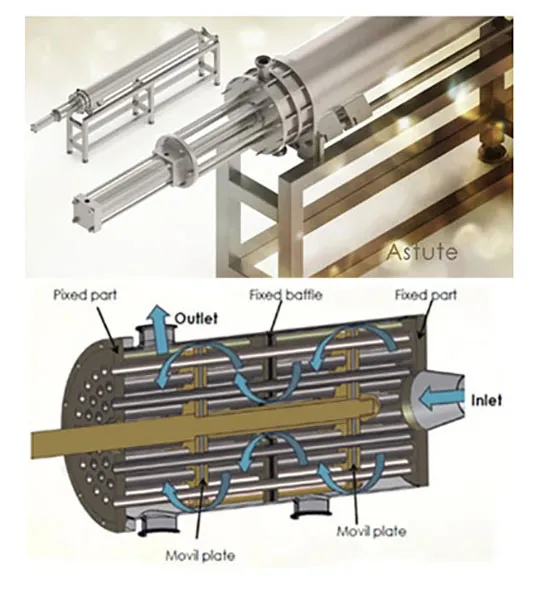

The product flows on the shell side and service flows through the inner tubes. On the shell side the combination of static deflectors and the scraping plates advance with a reciprocating movement, forcing a total displacement of all the product from side to side, independently of product process flow rate, whereas the product net flow travels through the heat exchanger generating nearly no pressure drop. The main difference between the ASTUTE and the conventional scrapped surface heat exchanger is reciprocating action of the scrapers on the shell side ( on the outer surface of the tubes) instead of rotary action of the scrapper shaft on the inner shell. The induced product flow is perpendicular to the inner tubes, which promotes heat transfer and cleaning, thus reducing thermal processing time and also extending the production cycles.
