Clamp Attachment

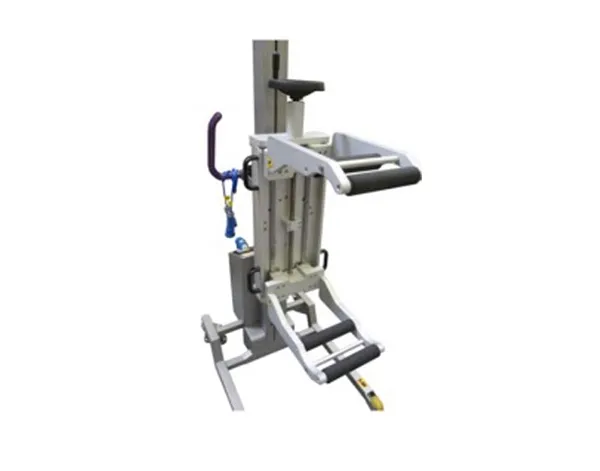

Clamp Attachment – SD/250-600/Rollers/Trap.

• The Clamp Attachment has been designed to suit the lifting and rotation of reels which are between 250mm and 600mm diameter.
• The manual clamping action is provided by a handwheel which has a torque limited fitted so that the clampdoes not over tighten.
• The Clamp can be rotated through 360 degrees and can be locked off in increments of 90 degrees with the unique quick release system.
• The attachment features an all new design with enhanced durability, operating and safety features which provide a simple and safe action.
• The attachment is suitable for the food industry and other hygienic and clean room applications.
• The attachment is backed up by a full bespoke design service ensuring the right solution can be made to suit any make or size of reel or drum.
• All Packline attachments are fully interchangeable and can be easily fixed or removed from any model of Compac lifting machine that is fitted with the quick release system.

Technical Specification

• Attachment Lift Capacity: 200kg (maximum) load.
• Centre of Gravity: 561mm (from column).
• Attachment Mass: 64kg.
• Main Materials: Stainless Steel and Anodised Aluminium.
