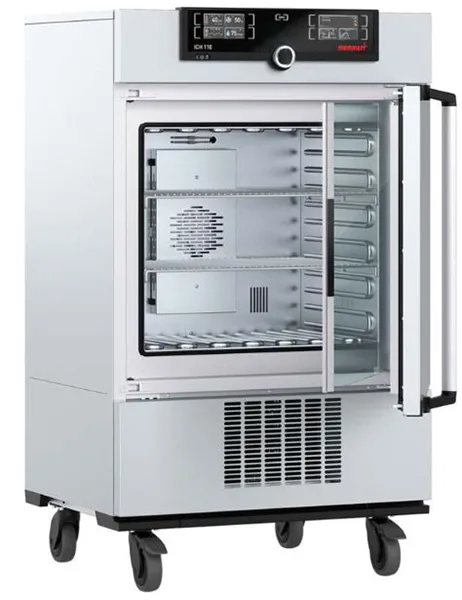

Memmert ICH110 C Stability Climate Chamber
ICH 110 C Memmert stability climate chambers guarantee the perfect atmosphere for climate and temperature tests. Unparalleled homogeneity of temperature and humidity.
Volume: 3.81 cu. ft. | 108 L
Interior Dimensions W x H x D in (mm): 22.04" x 18.90" x 15.75" (560 x 480 x 400 mm)
Exterior Dimensions W x H x D in (mm): 29.33" x 48.54" x 23.03" (745 x 1233 x 585 mm)
Housing: rear zinc-plated steel
Installation: on lockable castors
Max. number of internals: 5
Max. loading of chamber: 330.7 lbs (150 kgs)
Max. loading per internal: 44.09 lbs (20 kgs)
Electrical data:
230 Volts:
(+/- 10%)
50 Hz / approx. 1350 W
115 Volts:
(+/- 10%)
50/60 Hz / approx. 1350 W
Temperature Specs:
Setting temperature range: +10 to +50 °C
Working temperature range with & without humidity: +10°C up to +50°C
Setting accuracy temperature: 0.1°C
Temperature sensor: 2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error
Humidity Specs:
Humidity supply with distilled water from external tank by self-priming pump
Humidification by hot steam generator
Active humidifying and de-humidifying adjustable from 10-80 % rh with digital display of relative humidity - resolution of display 0.1 %, setting accuracy 0.5 %
