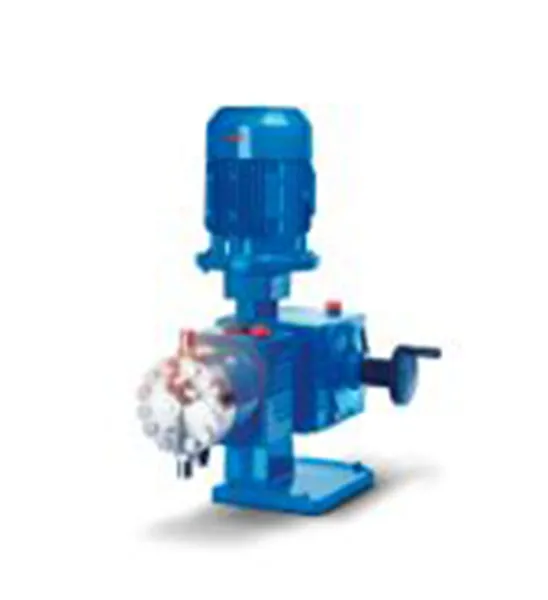

LEWA ecoflow® diaphragm metering pump
LEWA ecoflow® diaphragm metering pump
The all-around talent for virtually all industries.
No matter if offshore in rough seas or in production in pharmaceutical cleanrooms – the ecoflow diaphragm metering pump has established itself worldwide in a range of different industries as a reliable and economical metering pump.
It features an exact metering rate and enormous durability in extreme operating conditions. Low life cycle costs and high energy efficiency complete the profile of a true all-around talent.
Thanks to the tried-and-tested modular system, ecoflow diaphragm metering pumps can be configured with various pump heads and drives for almost all applications. Here, we set technological and qualitative standards: Each ecoflow diaphragm metering pump is equipped with the patented DPS diaphragm protection system and produced in Germany.
Good reasons for a LEWA ecoflow®
The LEWA ecoflow is a hydraulically actuated diaphragm metering pump that provides numerous advantages over comparable pumps.
Unique suction capability
The LEWA ecoflow diaphragm metering pump differs from other pumps due to its unique suction capacity. With an absolute suction pressure of up to 0.1 bar abs., it not only provides a wide array of safe installation options. The operating costs for the entire system can also be lower than with other pumps.
Absolutely safe startup
Starting up the metering pump is safe and easy: When the pump is not operating, a spring pulls the diaphragm into a safe position at all times. This allows us to guarantee maximum safety when starting up your system and a long service life of the diaphragm.
Low maintenance costs and a long service life
The ecoflow series features a long service life for all components and particularly low maintenance and operating costs. If the regular maintenance intervals are maintained, our diaphragm pumps can operate for 40 years or more in your production process.
