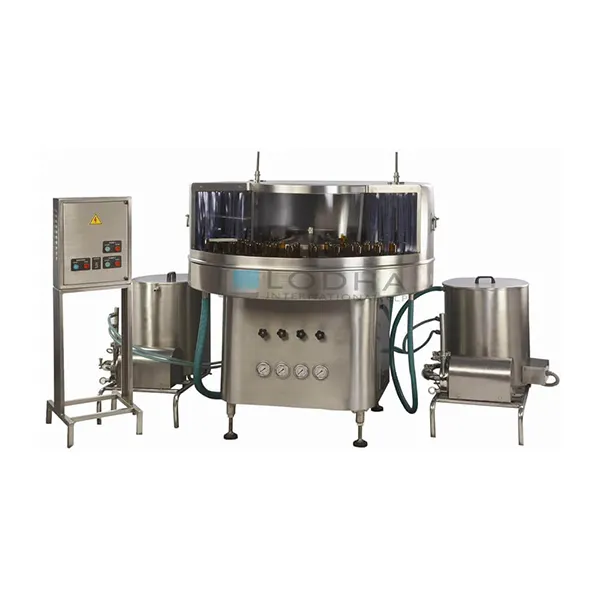

Rotary Bottle Washing Machine Model

Rotary Bottle Washing Machine Model LI-RBW, operates on the rotary principle with "GENEVA" mechanism and requires manual loading and unloading of bottles. LI-RBW model is suitable to wash various types of Bottles ranging from 15 ml to 1000 ml size with maximum speed of 100 bottles per minute. Machine construction is in Stainless Steel finish including frame structure. All parts used in contact with washing zone and Jets are made from stainless steel 316 Material. Intermittent handling of Bottles ensures the maximum time for washing. Machine also offers various customised options for washing sequence as per customers’ requirements. Washing process takes place with Four different Washing Zones for optimum washing. Machine also equipped with external washing of Bottles. We can also customise the machine to suits special type of bottle or size and also washing sequence. We have also another lower capacity Model LI-RBW 64 with speed of 60 bottles per minute for lower speed requirement and also require small area compare to LI-RBW 100.This multifunctional multi featured machine meets the GMP requirements of washing for glass and plastic bottles

SALIENT FEATURES OF ROTARY BOTTLE WASHING MACHINE MODEL:

16 Jets for each washing zones

All contact parts made of SS-316 material

Machine construction is in SS-304 material

Suitable for 15 ml to 1000 ml Bottle Size*

Machine with Geneva-Cam Mechanism

Washing sequence can be made as per customers’ requirements.

Built-in 2 Pumps and 2 Tanks
